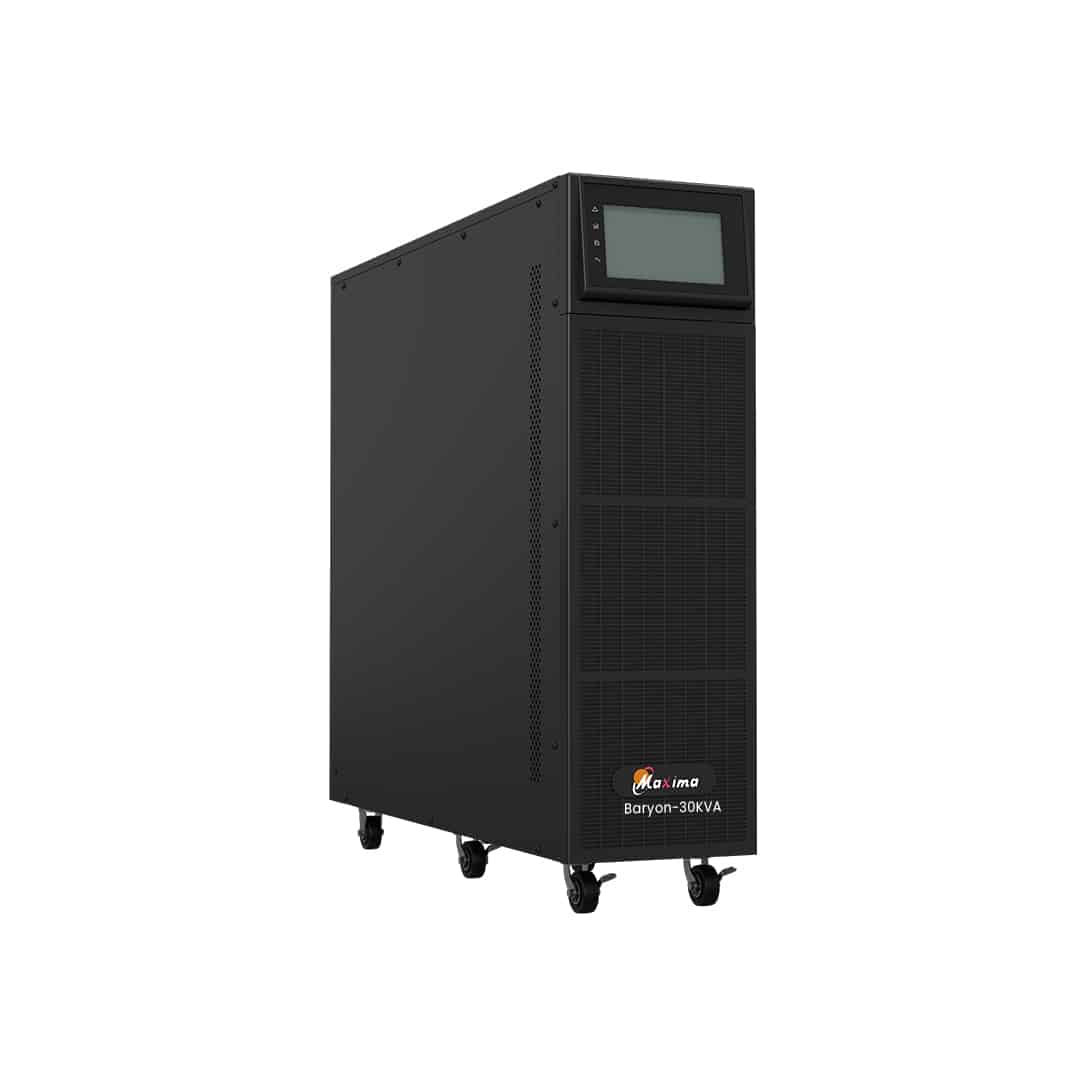

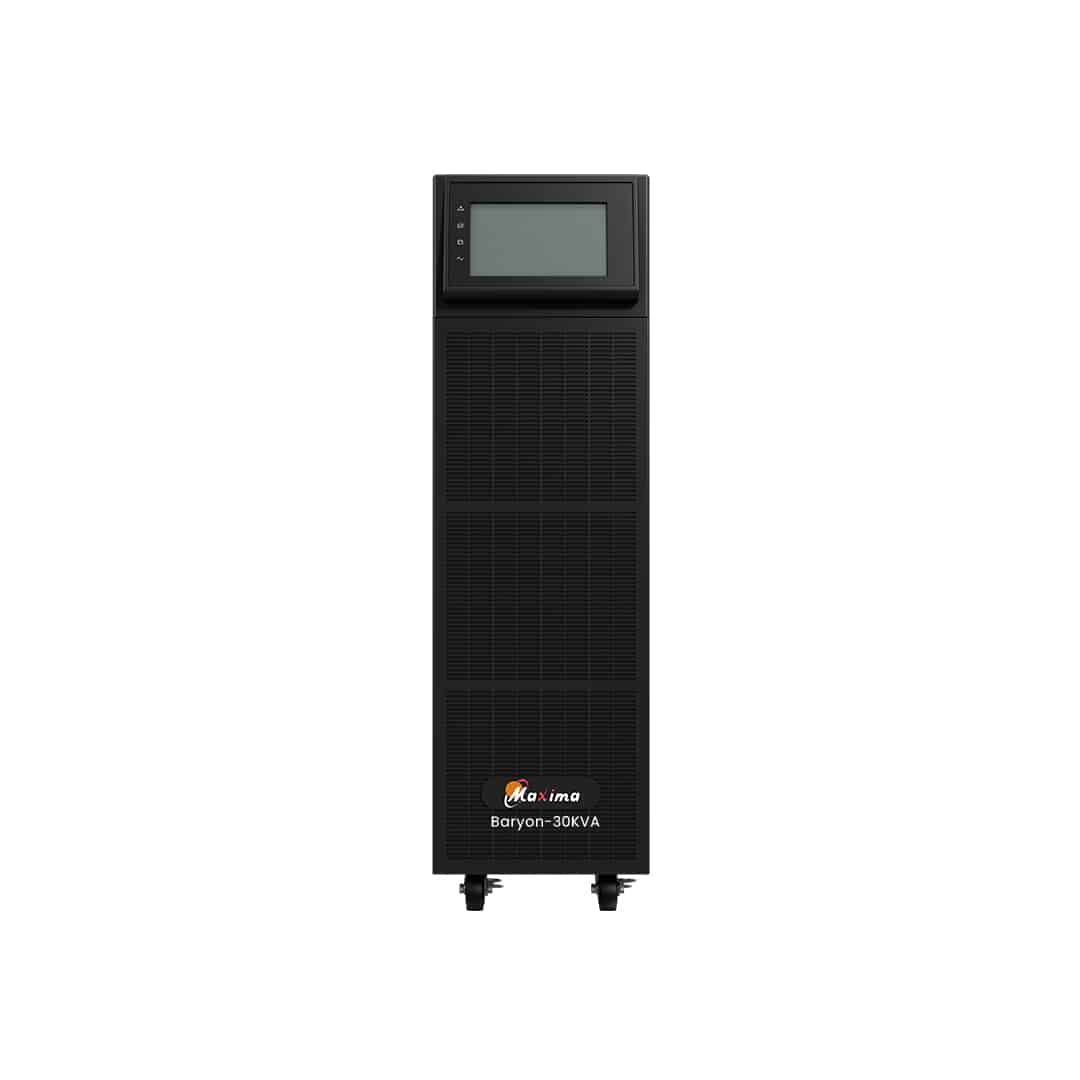

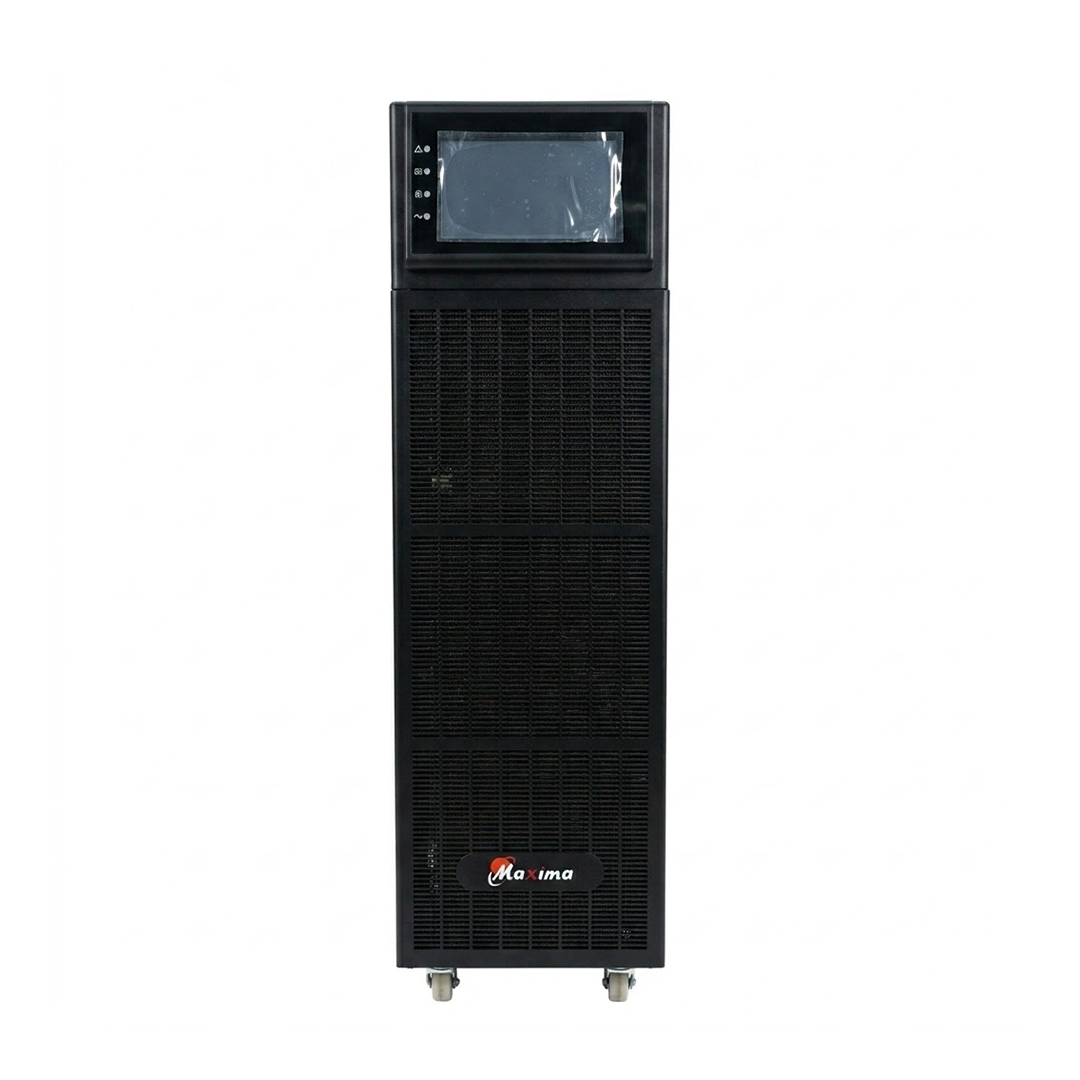

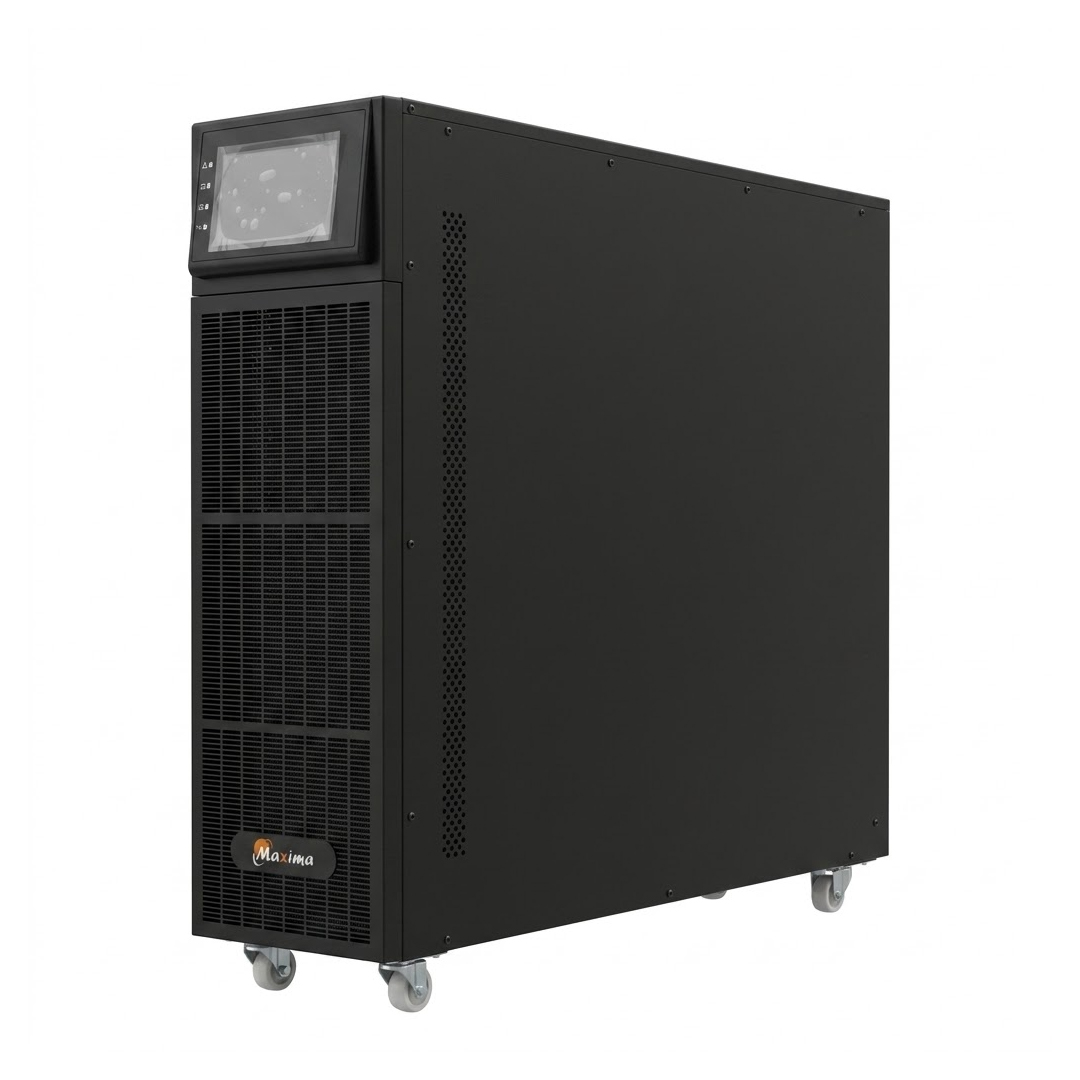

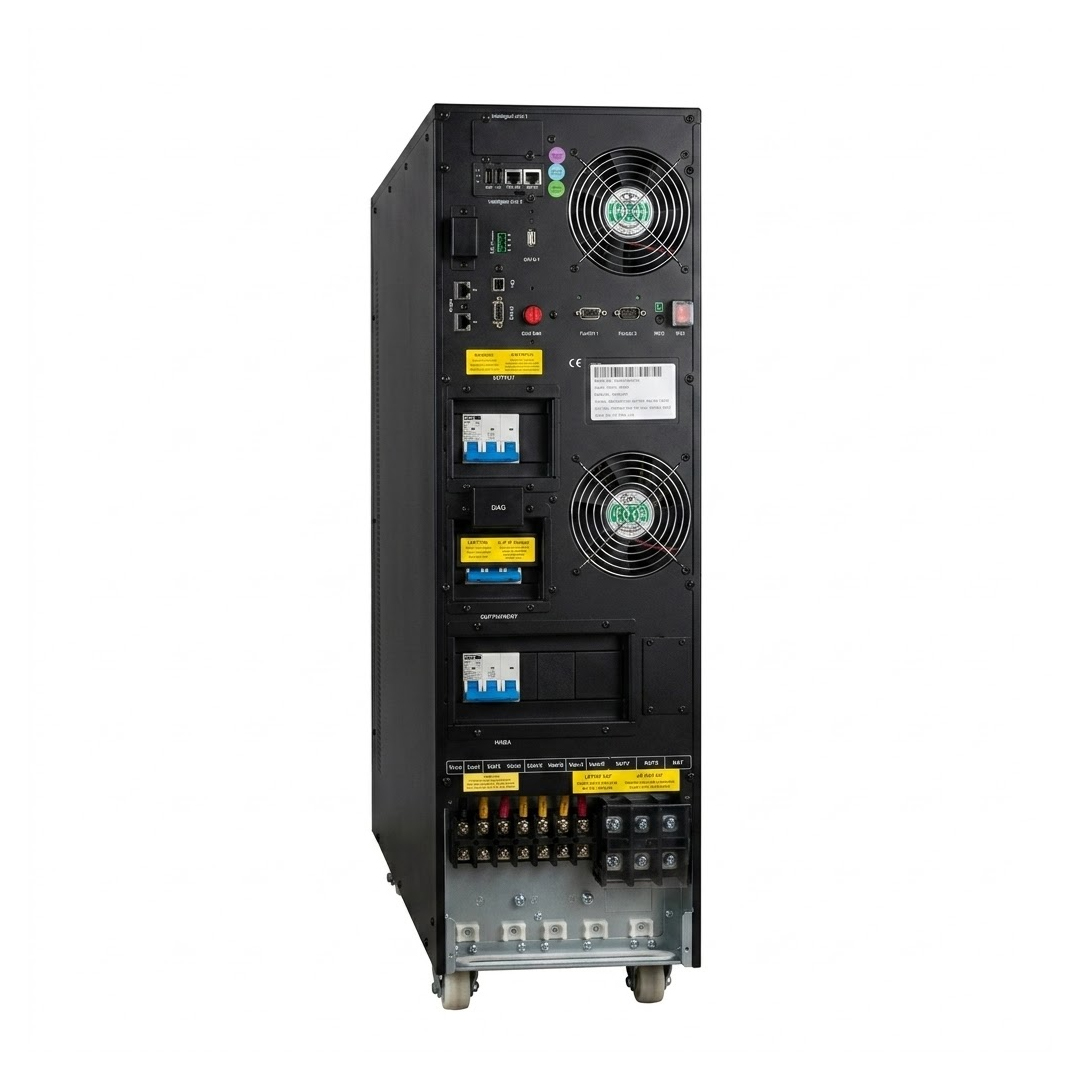

Baryon 30KVA UPS – On Line 3ph UPS
AED: 13,185.00
Quick Specs
| Voltage Range: 208-478Vac |
Transfer Time: 0ms / 0ms |
Battery: 120Vdc – not included |
| Parallel: N+X – max 4 | Phase: 3 | Regulation: ±1% |
Features
- High power density design
- Online double conversion with DSP control
- N+X parallel redundancy, maximum 4 units
- Wide input voltage : 208 -478Vac
- Wide frequency range: 40-70Hz
- 100% unbalance load compatible
4 in stock
Introduction
Maxima BARYON range is designed for high-power 3-phase applications. Featuring a cutting-edge design, BARYON offers the highest level of specifications available in UPS technology.
N+X redundancy
Total load demand is met by all the UPS sharing the load between themselves equally. If one of the UPS fails, the remainder are able to continue supporting the load.
DSP Control
All the parameters experienced by the UPS are converted into digital signals. DSP uses these digital values to process and control the UPS.
<3% Harmonics
Sensitive devices including medical equipment require extremely pure sine wave output. BARYON using output filters profiles clean output ready for use in all – including sensitive devices.
100% unbalanced load support
While the UPS is designed for effectively powering 3 phase load, it is capable of running 1 phase loads on each phase, even with 100% unbalance – meaning load one only one of the 3 phases.
| Weight | 236 kg |
|---|---|
| Dimensions | 250 × 900 × 868 mm |
