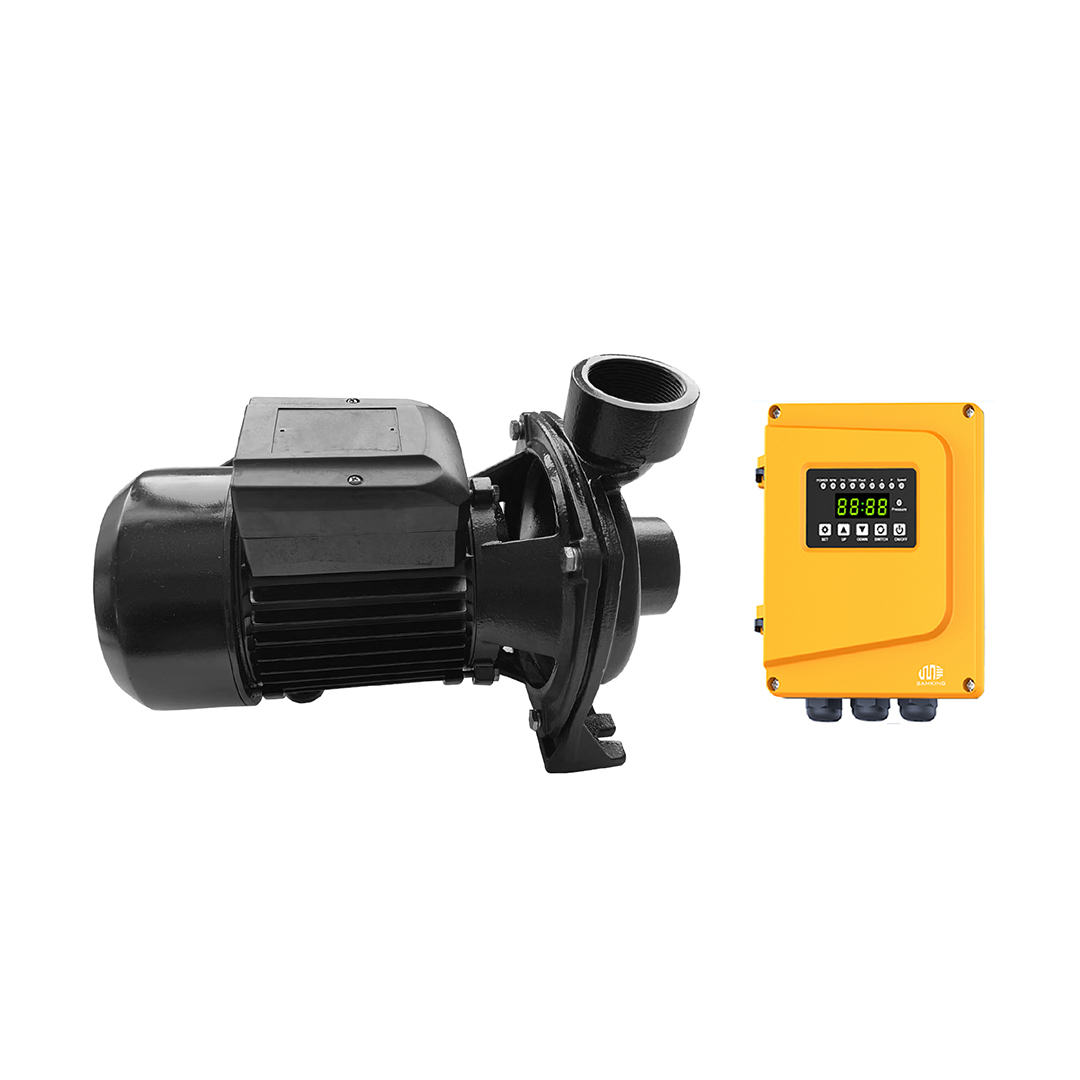

SP SHF6A – 2800W DC External Controller
AED: 1,010.00(Excl. VAT)
Features
- Voltage: 60–380 Vmp / 450 VOC — IDC max 10A — max input 2.2 kW
- Max flow 48.4 m3/h / Max head 22m / RPM 500–3600
- External IP65 controller (PYS-2200W)
- BLDC motor with MPPT and vector control — MPPT efficiency max 99%
- Soft start / Dry run / Lost phase / Stall / Reverse polarity protection
7 in stock
Introduction
The Maxima SHF6A-2800W is a 2800W DC solar surface pump delivering up to 60.9 m3/h flow and 25m head, built for direct solar operation with no battery or grid connection required.
General Description
The SHF6A-2800W operates at 60–380 Vmp / 450 VOC with a maximum input current of 10A DC, accepting 2–10 pcs of 340W panels in series (best 7–10 pcs). It delivers a maximum flow of 60.9 m3/h at a maximum head of 25m and a maximum input power of 2.8 kW. The external PYS-2800W controller is IP65-rated while the pump carries IP54 protection. The pump features a high-efficiency BLDC motor with MPPT and vector control, MPPT efficiency max 99%, soft start operation, reverse polarity protection, and a 3″ × 3″ outlet. Pump unit weighs 17.6 kg with the controller at 1.8 kg separately. Copper impeller and cast iron housing. CE and ISO 9001:2015 certified.
Maximum Flow Output
Delivers 60.9 m3/h maximum flow — the highest in the SHF external controller range.
Reverse Polarity Protection
The PYS-2800W controller includes reverse polarity protection — reverse + and − connections are safe.
Flexible Panel Configuration
Accepts 2–10 pcs of 340W panels in series, best 7–10 pcs, at 60–380 Vmp / 450 VOC.
| Weight | 20.5 kg |
|---|---|
| Dimensions | 0.465 × 0.275 × 0.43 mm |
