FCP Solar Water Pump SP-Swiming (Built in Contr 0.6kw)

Introduction

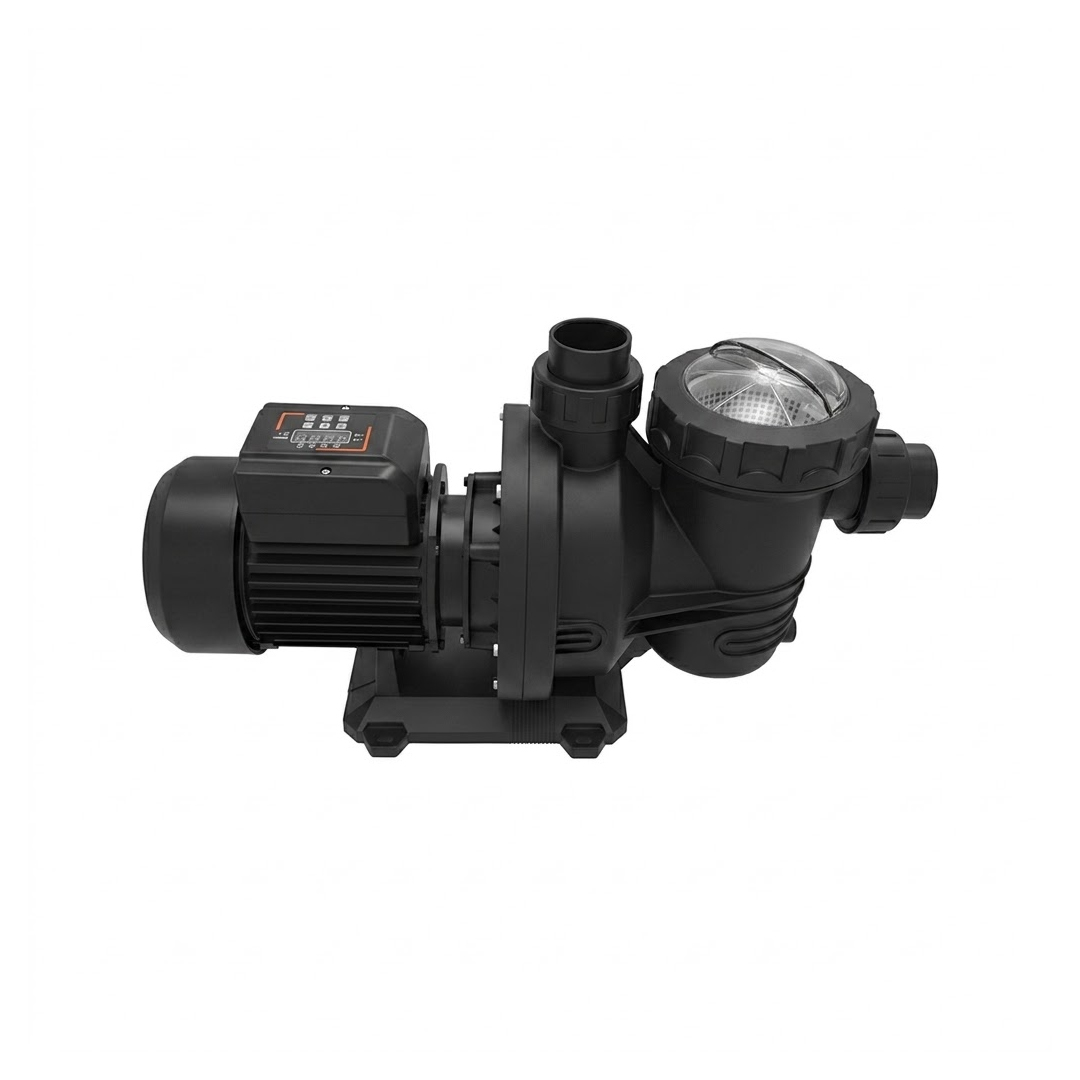

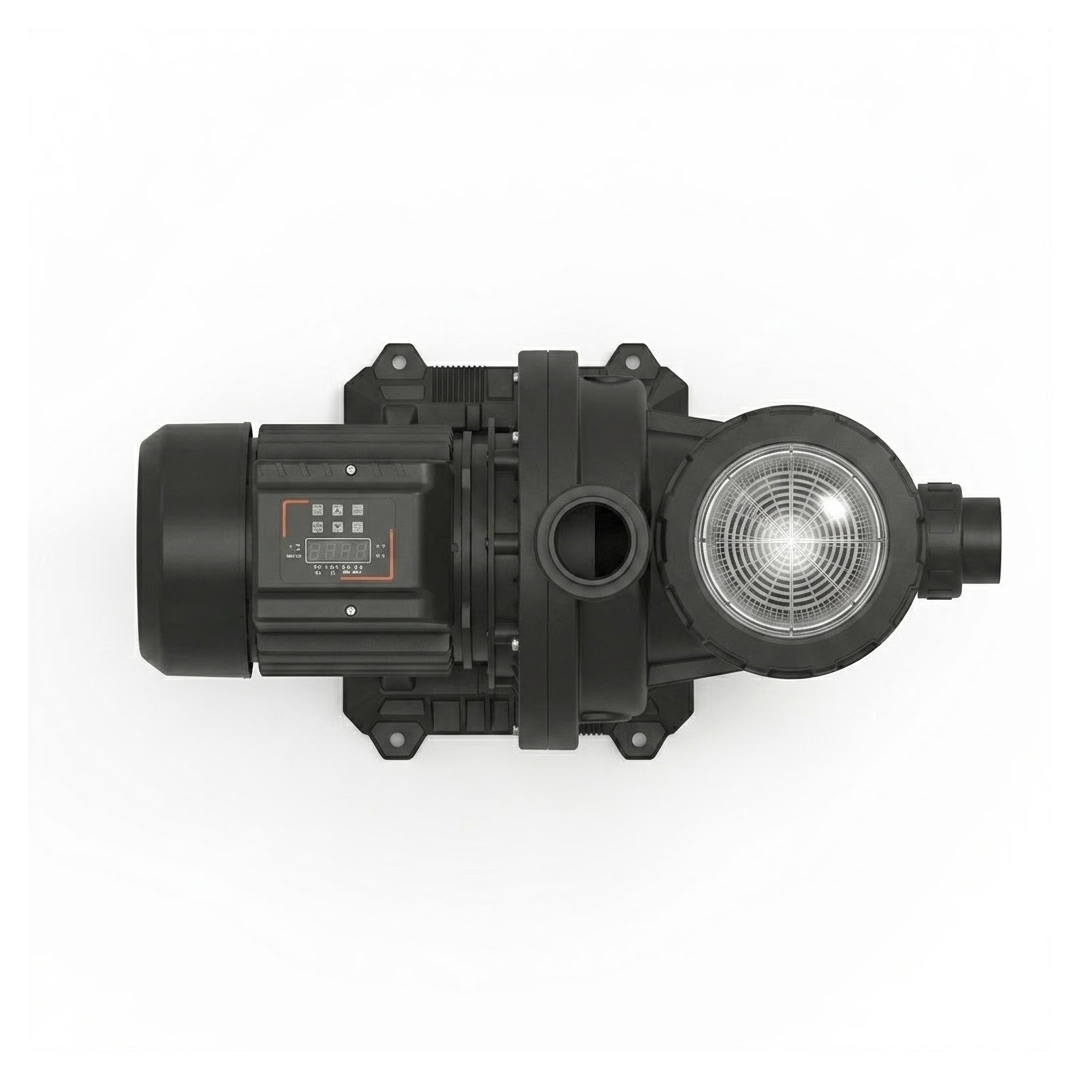

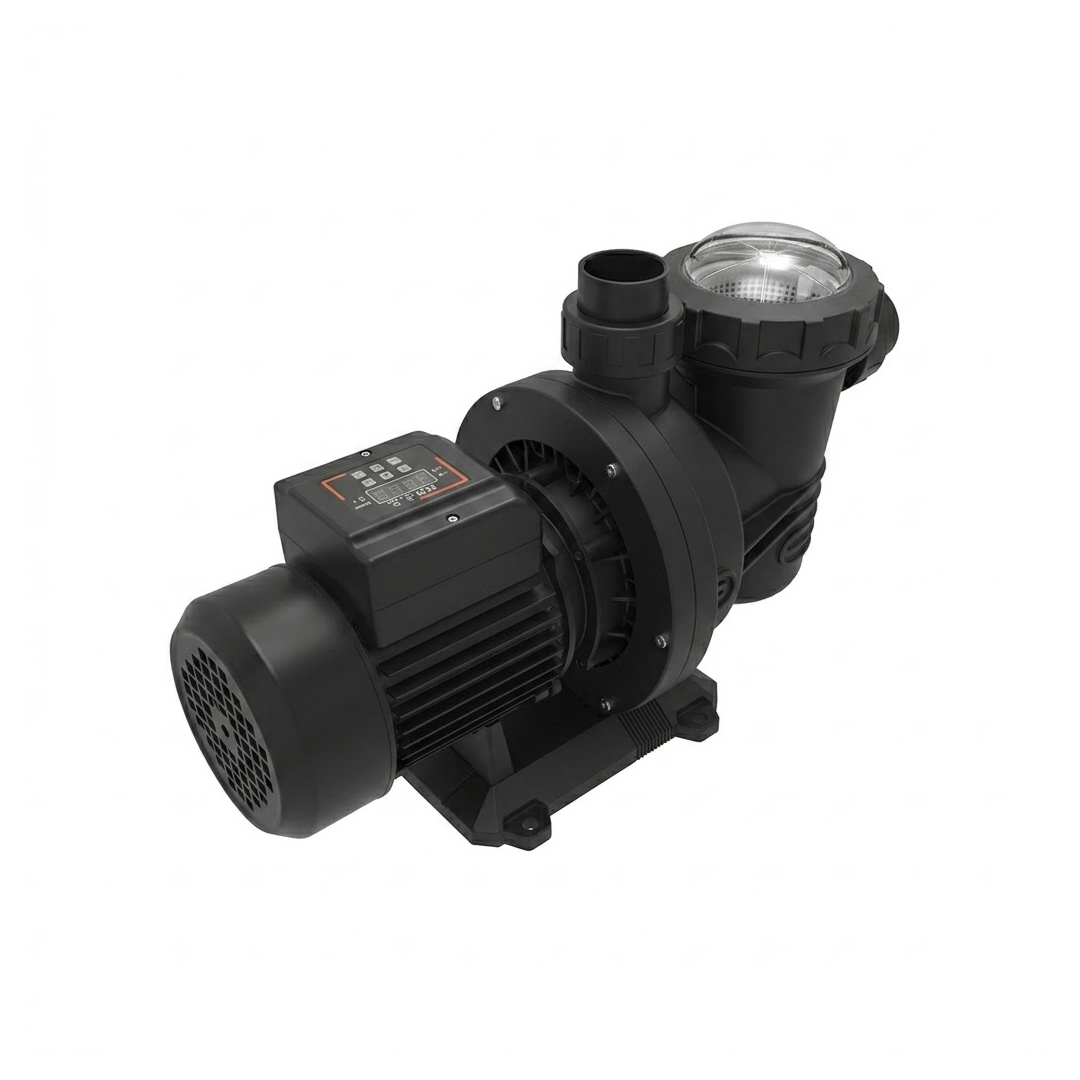

The Maxima FCP550-900W is a 900W DC solar swimming pool pump delivering up to 19 m3/h flow
and 18m head, operating directly from solar with a fully built-in controller and no battery or grid
connection required.

General Description

The FCP550-900W operates at 60–130 Vmp / 150 VOC with a maximum input current of 10A DC,
recommended with 3 pcs of 340W panels in series. It delivers a maximum flow of 19 m3/h at a
maximum head of 18m. The controller is fully built-in. The pump features a high-efficiency BLDC
motor with MPPT and vector control, MPPT efficiency max 99%, soft start, and a φ50 × φ50
inlet/outlet compatible with standard pool pipework. RPM 500–3600, IP54 rated. Pump unit weighs
8.3 kg. CE certified.

Pool-Dedicated Design

φ50 × φ50 inlet/outlet compatible with standard
pool pipe fittings. Max flow 19 m3/h at 18m head.

Built-in Controller

Fully integrated controller — no separate control unit,
wiring, or mounting required.

Direct Solar Operation

Operates at 60–130 Vmp / 150 VOC from 3 pcs of
340W panels — no battery or grid connection required.
