SP QB60 – 800W
AED: 555.00(Excl. VAT)
Quick Specs
| Input Power (W): 800 | DC Voltage Range (VDC): 40 ~ 90 | Max Flow Range (m3/hr): 2.2 |
| Max Head Range (m): 62 | Outlet Size (Inch): 1 | Controller Type: Internal |
Features
- Voltage: 40–90 Vmp / 100 VOC — IDC max 10A — max input 0.8 kW
- Max flow 7.9 m3/h (133 L/min) / Max head 37 m / RPM 500–3600
- Built-in controller — no external unit required
- BLDC motor with MPPT and vector control — MPPT efficiency max 99%
- Soft start / Dry run / Lost phase / Stall / Over-temperature protection
8 in stock
Introduction

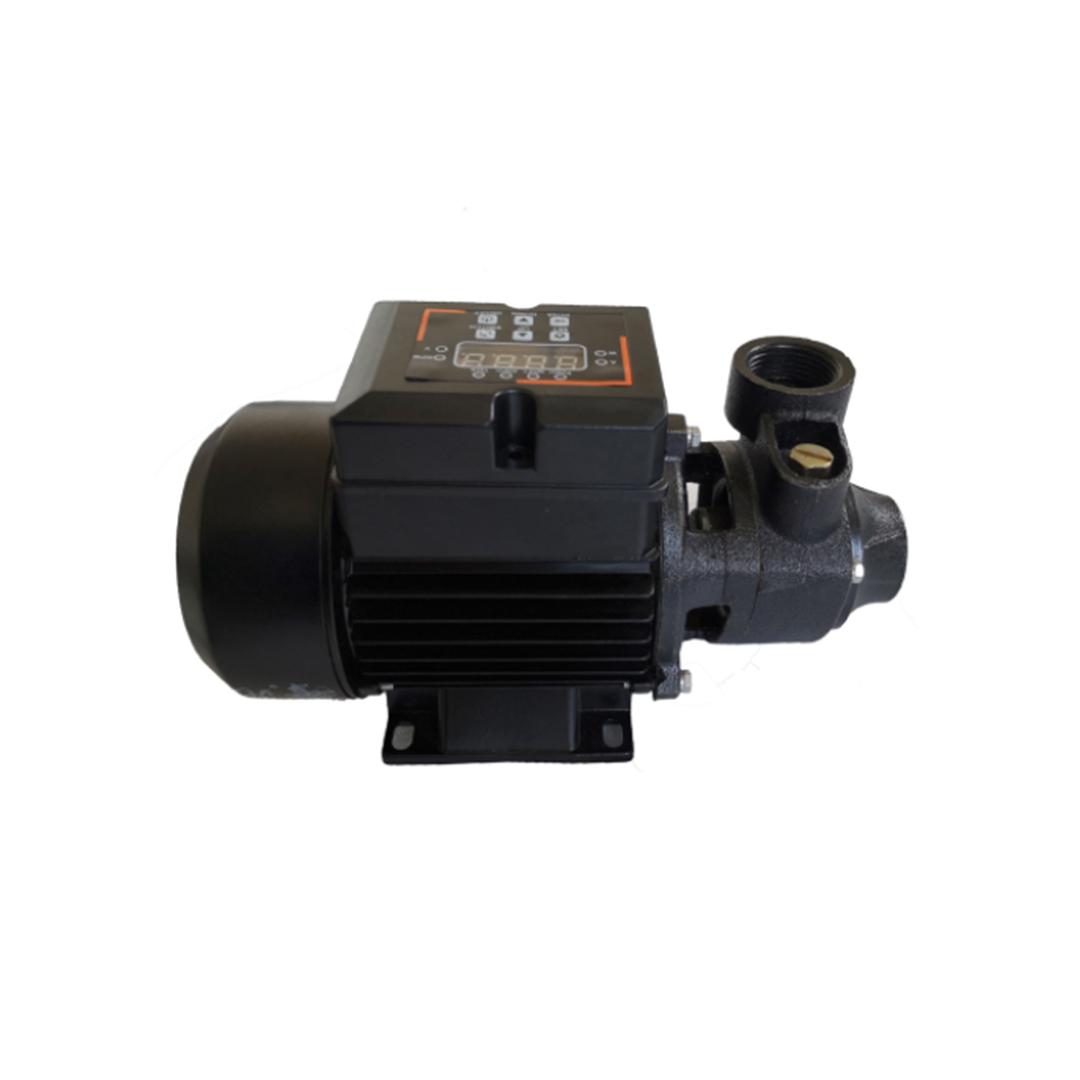

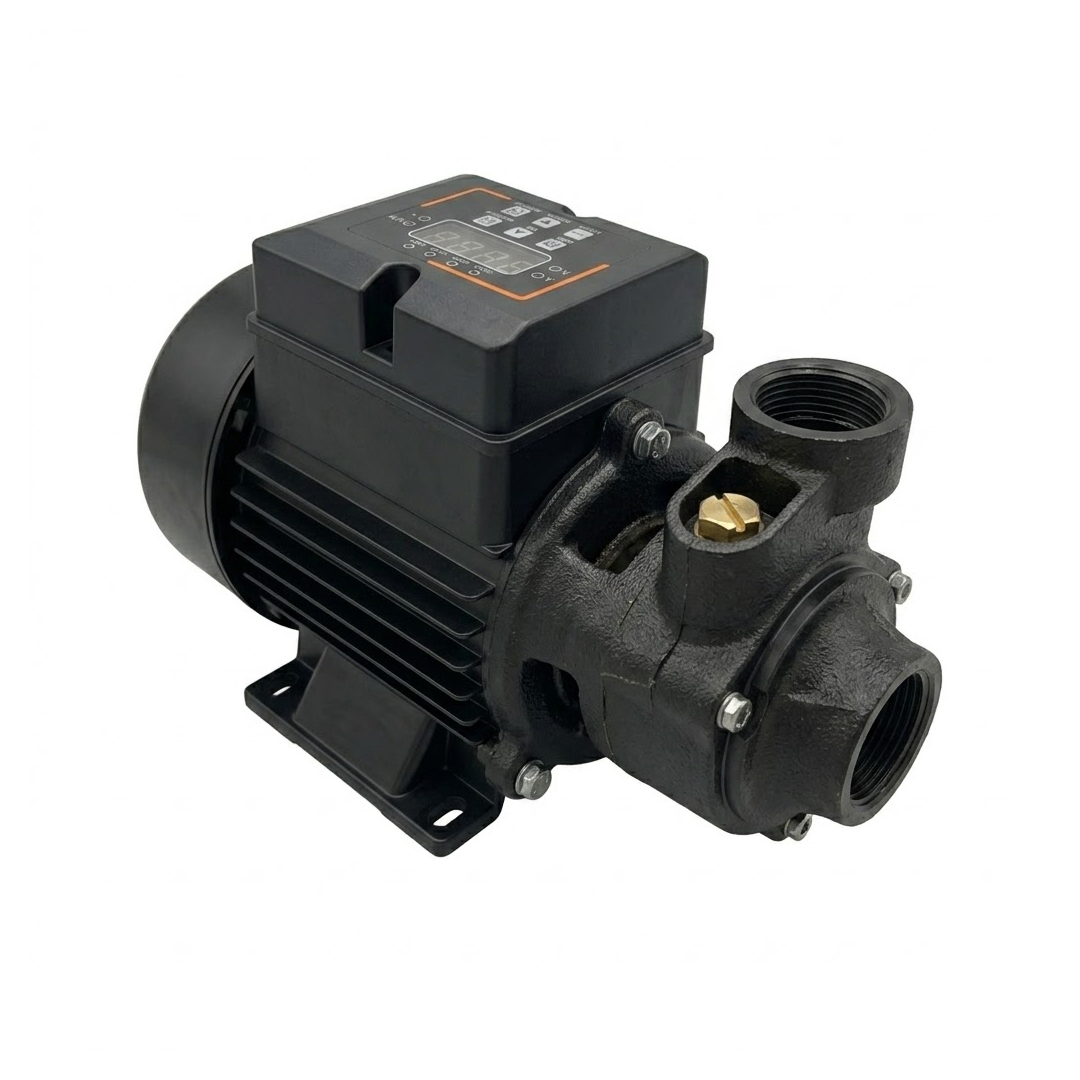

The Maxima QB60-800W is an 800W DC solar surface pump delivering up to 2.2 m3/h flow and 62m
head, operating from 2 pcs of 340W panels with a fully built-in controller.
General Description
The QB60-800W operates at 40–90 Vmp / 100 VOC with a maximum input current of 10A DC and a
maximum input power of 0.8 kW, recommended with 2 pcs of 340W panels in series. It delivers a
maximum flow of 2.2 m3/h (36 L/min) at a maximum head of 62m — the highest head in the built-in
controller range. The controller is fully built-in. The pump features a high-efficiency BLDC motor
with MPPT and vector control, MPPT efficiency max 99%, soft start, and a Rp 1″ × 1″ outlet. Motor
speed 1000–4000 RPM, max water temp 40°C, insulation class F, IP54 rated. Pump unit weighs 4.2
kg. Copper impeller and cast iron housing. CE and ISO 9001:2015 certified.
Highest Head in Built-in Range
Delivers 62m maximum head — the
highest of any built-in controller model in the Maxima range.
Built-in Controller
Fully integrated controller — no separate control unit,
wiring, or mounting required.
2-Panel Configuration
Recommended with 2 pcs of 340W panels in series
at 40–90 Vmp / 100 VOC.
| Weight | 11 kg |
|---|---|
| Dimensions | 0.305 × 0.16 × 0.2 mm |
