Introduction – MSCC MPPT 7-40/110 Solar Charge Controller 12V/24V

The MSCC MPPT 7-40/110 Solar Charge Controller 12V/24V is a multi-stage Maximum Power Point Tracking (MPPT) photovoltaic battery charge controller. It uses advanced MPPT technology to maximize the energy generated by your solar panels. As a result, the controller delivers efficient battery charging and improves the overall performance of your solar power system.

General Description

The controller features a high-efficiency Buck conversion circuit and an intelligent MCU that continuously monitors the solar panel voltage. It automatically calculates the Maximum Power Point (MPP) and adjusts the operating point whenever sunlight, temperature, or weather conditions change. Therefore, the solar panels always operate at their highest possible efficiency. Compared with traditional PWM charge controllers, the MPPT7 Series can improve solar power utilization by approximately 5% to 30%, depending on the solar panel specifications and operating conditions.

Smart MPPT Power Tracking

The intelligent MPPT algorithm continuously tracks the maximum power point of the solar array. As a result, the controller delivers stable power output even when solar irradiance and temperature fluctuate throughout the day.

Higher Charging Efficiency

Unlike conventional PWM charge controllers, the MPPT7 Series converts excess solar panel voltage into additional charging current. This process increases charging efficiency, speeds up battery charging, and improves the overall use of available solar energy.

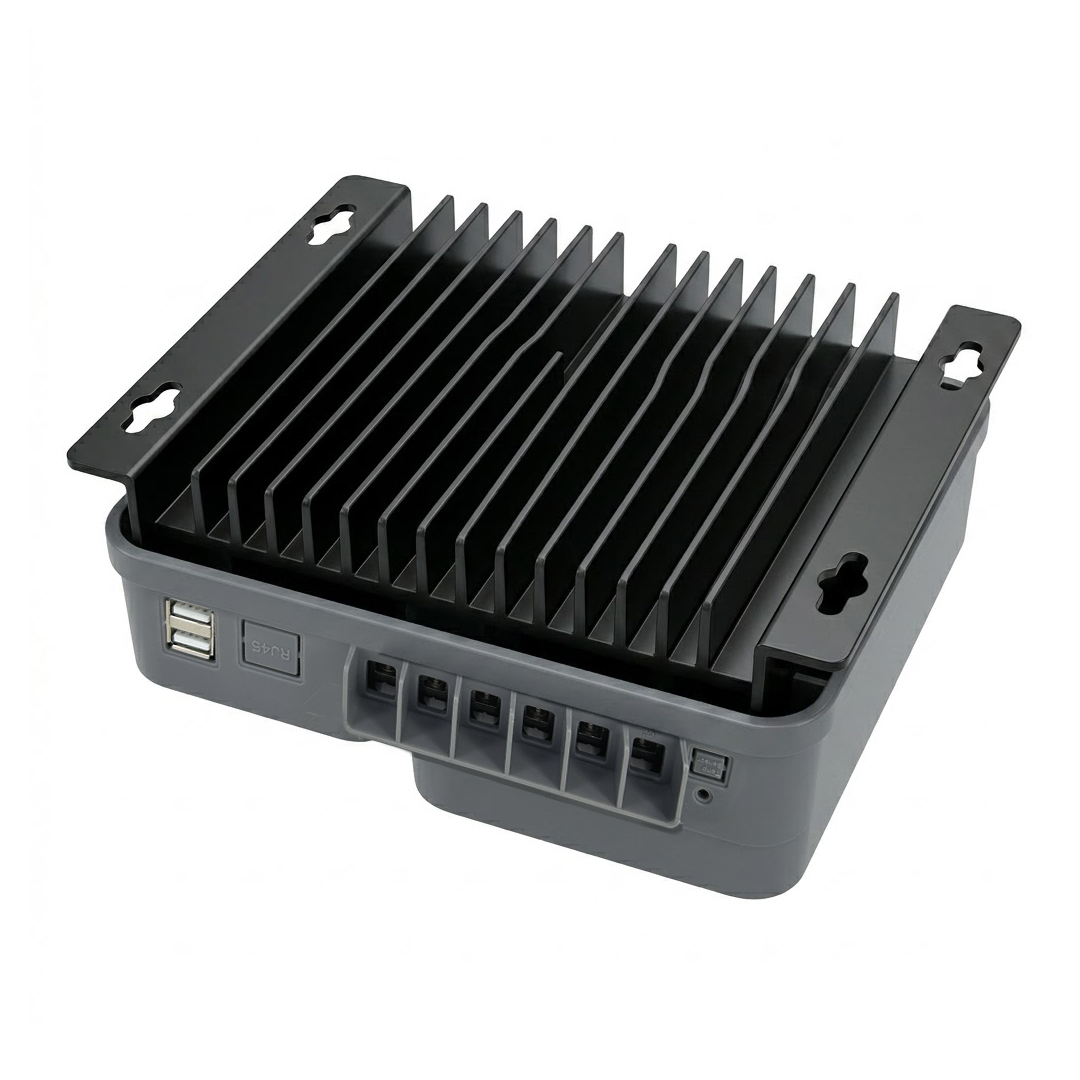

Wall-Mount Installation

The controller features a compact wall-mount design for quick and simple installation. It is suitable for residential, commercial, and small industrial solar applications. In addition, its compact structure makes it easy to integrate into both new and existing solar power systems.
