CPM-130-700W Internal Controller
AED: 610.00(Excl. VAT)
Quick Specs
| Input Power (W): 700 | DC Voltage Range (VDC): 40 ~ 90 | Max Flow Range (m3/hr): 5.1 |
| Max Head Range (m): 31 | Outlet Size (Inch): 1 | Controller Type: Internal |
Features
- Voltage: 40–76 Vmp / 100 VOC — IDC max 10A — max input 0.7 kW
- Max flow 5 m3/h (83 L/min) / Max head 31m / RPM 500–4000
- Built-in controller — no external unit required
- BLDC motor with MPPT and vector control — MPPT efficiency max 99%
- Soft start / Dry run / Lost phase / Stall / Over-temperature protection
8 in stock
Introduction

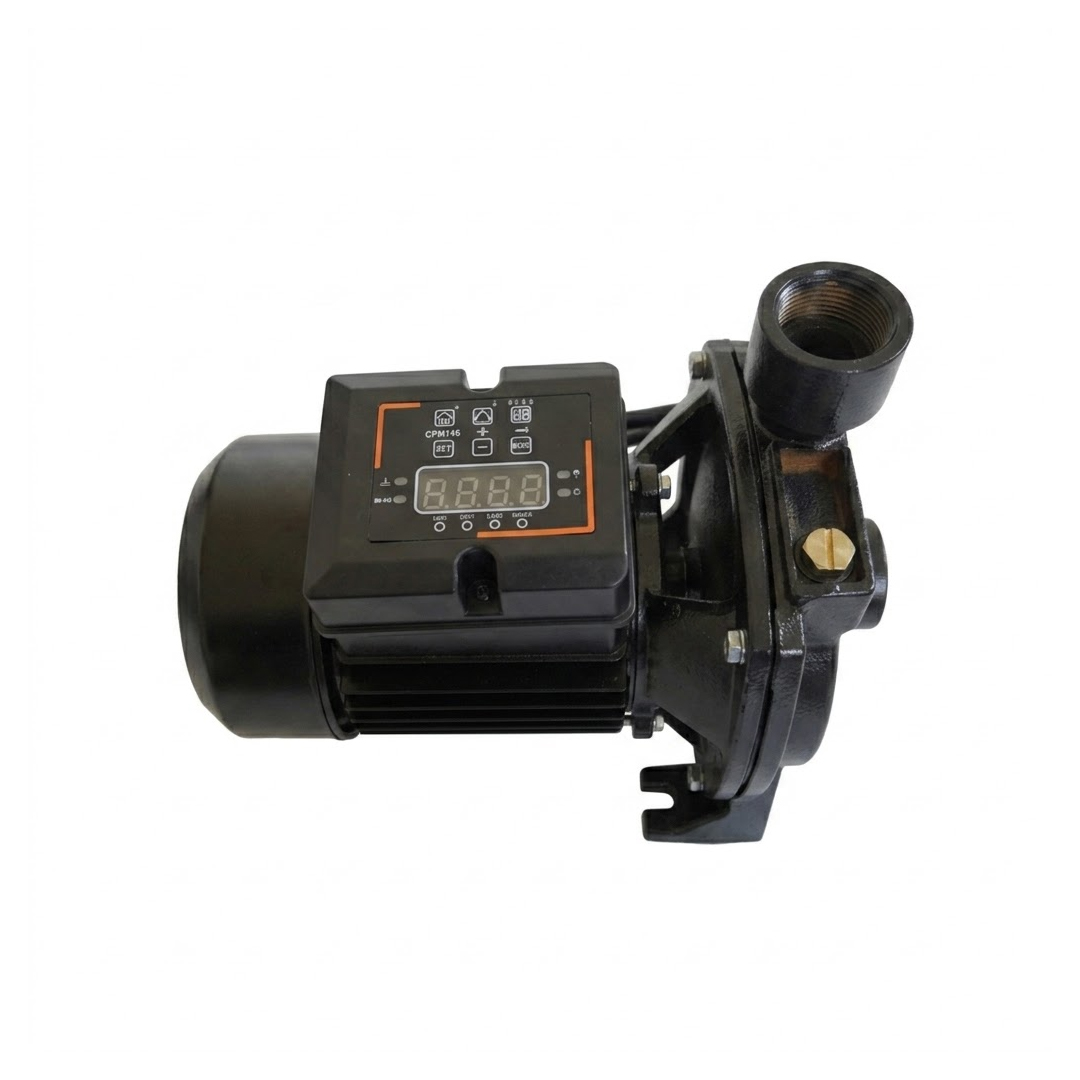

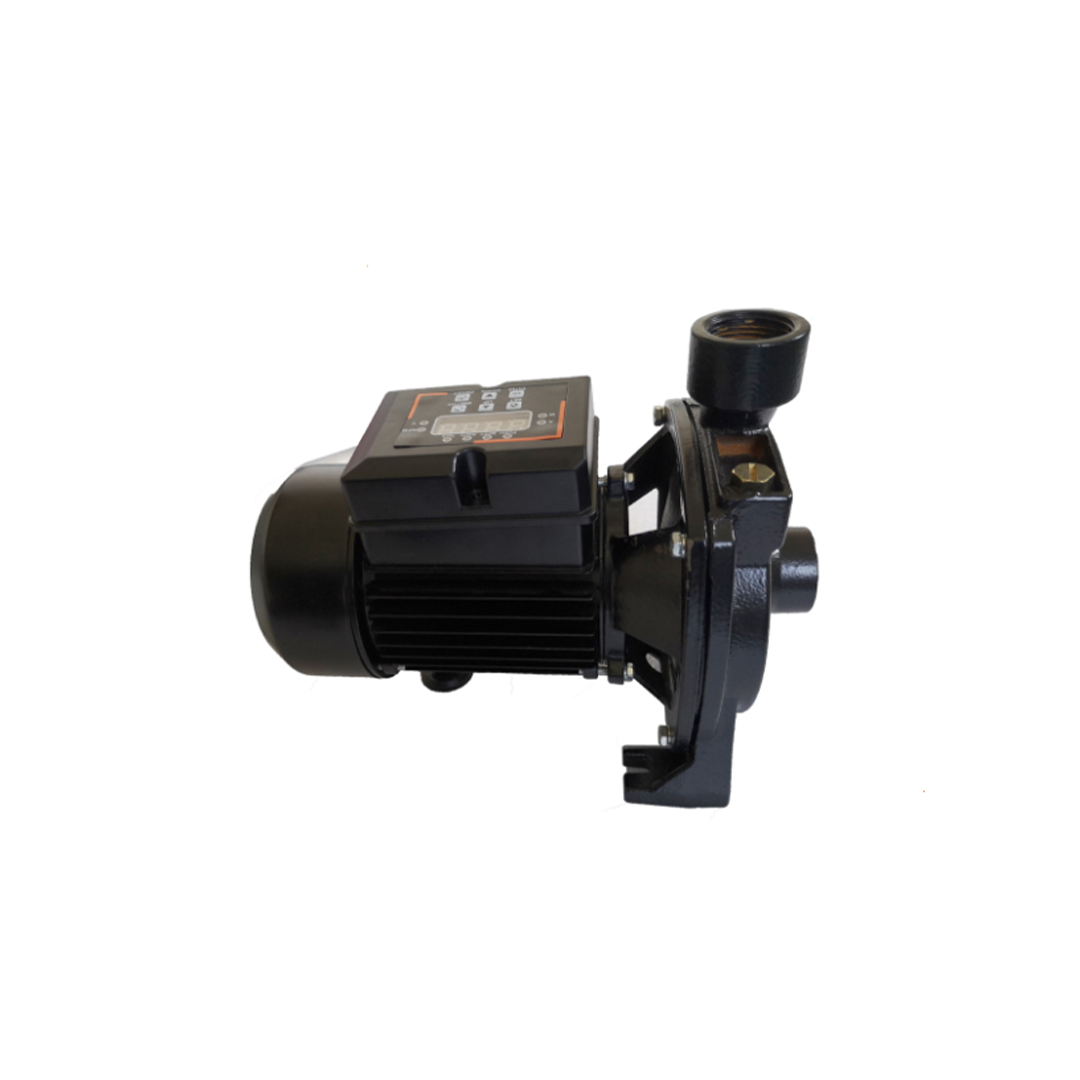

The Maxima CPM130-700W is a 700W DC solar centrifugal surface pump delivering up to 5 m3/h
flow and 31m head, operating from 2 pcs of 340W panels with a fully built-in controller..
General Description
The CPM130-700W operates at 40–76 Vmp / 100 VOC with a maximum input current of 10 A DC
and a maximum input power of 0.7 kW, recommended with 2 pcs of 340W panels in series. It delivers
a maximum flow of 5 m3/h (83 L/min) at a maximum head of 31m. The controller is fully built-in.
The pump features a high-efficiency BLDC motor with MPPT and vector control, MPPT efficiency
max 99%, soft start, and a Rp 1″ × 1″ outlet. Motor speed 500–4000 RPM, max water temp 40°C,
insulation class F, IP54 rated. Pump unit weighs 5.8 kg. Copper impeller and cast iron housing. CE
and ISO 9001:2015 certified.
Flow and Head Balance
Delivers 5 m3/h flow at 31m max head from just 2
pcs of 340W panels.
Built-in Controller
Fully integrated controller — no separate control unit,
wiring, or mounting required.
Lightweight Centrifugal Design
At 5.8 kg with built-in controller, it is the
lightest centrifugal model in the built-in controller range.
| Weight | 7.7 kg |
|---|---|
| Dimensions | 0.3 × 0.195 × 0.245 mm |
