SPN1-11P-B-0.6K-DC
AED: 880.00(Excl. VAT)
Quick Specs
| Input Power (W): 600 W | Min DC Voltage (VDC): 40 | Max DC Voltage (VDC): 90 |
| Nominal Flow (m3/hr): 1.0 | Nominal Head (m): 70 | Min Flow Range (m3/hr): 0.6 |
| Max Flow Range (m3/hr): 3.4 | Min Head Range (m): 10 | Max Head Range (m): 80 |
Features
- AISI 304 Stainless Steel Construction – Strong, corrosion-resistant, and durable.
- High-Efficiency BLDC Motor – Low maintenance with superior performance.
- External Controller – Flexible installation and easy management.
- DC-Only Operation – Ideal for solar and battery-powered setups.
- Real-Time System Display – Voltage, current, power, RPM, and temperature monitoring.
- Encapsulated Water-Filled Motor – Safe cooling with zero pollution risk.
3 in stock
Introduction
The MAXIMA Solar Motor Pump is an advanced water supply system powered by the sun — the most abundant renewable energy source. Engineered for simplicity and maintenance-free operation, it provides a dependable and sustainable solution for delivering clean water in remote areas where grid electricity is either unreliable or completely unavailable.
General Description
Built for long-term performance, the system uses a high-efficiency BLDC motor combined with a durable AISI 304 stainless steel body to ensure reliable operation in demanding environments. Its external controller gives users flexibility during installation and enables smarter system management.
Performance & Operation
Designed specifically for solar applications, the pump operates exclusively on DC power, making it fully compatible with solar panels and battery systems. The integrated display provides real-time readings of voltage, current, power, RPM, and controller temperature, allowing users to monitor performance easily and make informed decisions.
Durability & Eco-Safety
The pump features an encapsulated, water-filled motor that ensures efficient internal cooling while eliminating any risk of water contamination. This eco-friendly design, combined with corrosion-resistant stainless steel construction, makes the MAXIMA Solar Pump a long-lasting and environmentally responsible solution for agriculture, household use, and off-grid water supply.

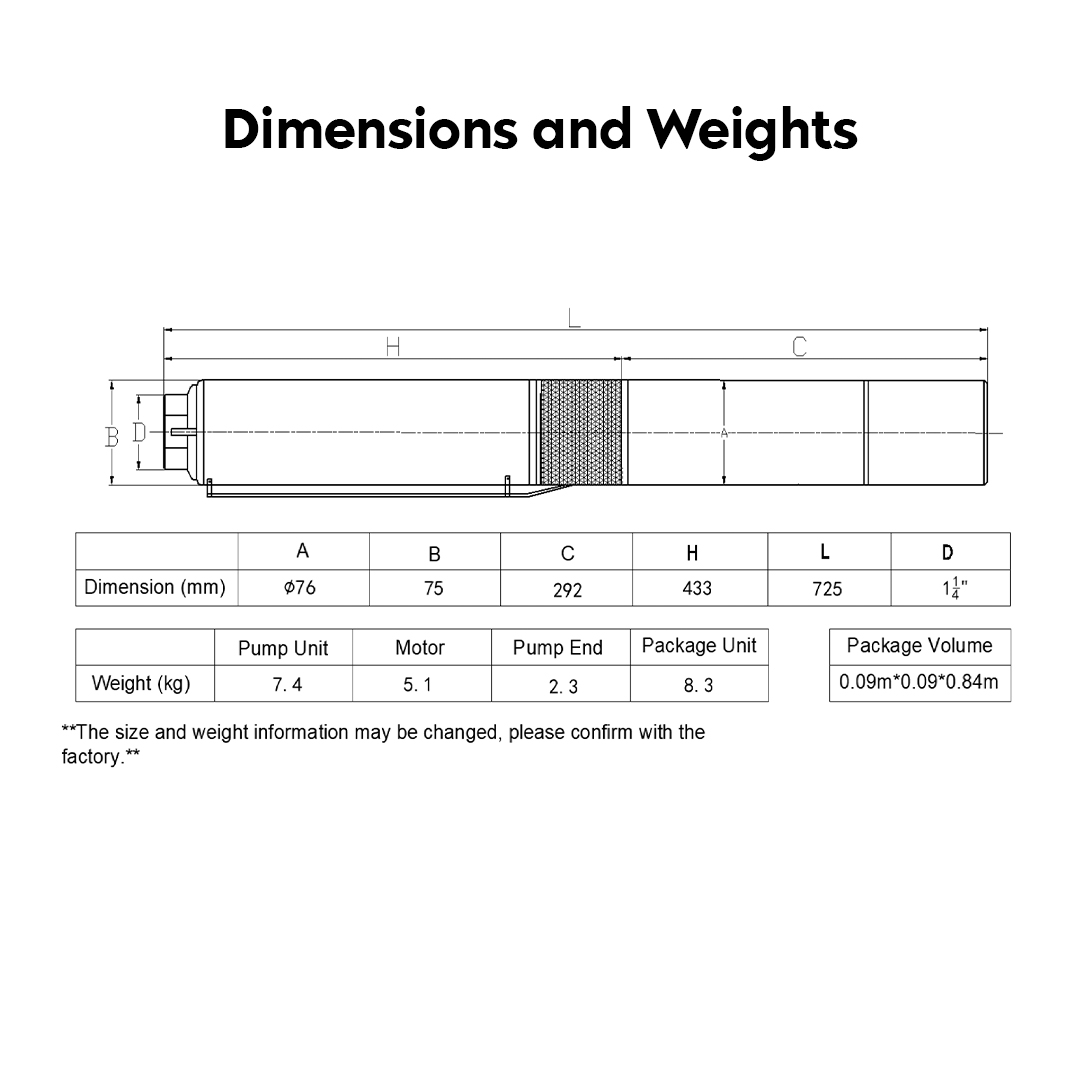

| Weight | 8.3 kg |
|---|---|
| Dimensions | 90 × 90 × 840 mm |
