SP QB50 – 300W
AED: 505.00(Excl. VAT)
Quick Specs
| Input Power (W): 300 | DC Voltage Range (VDC): 20 ~ 40 | Max Flow Range (m3/hr): 2.0 |
| Max Head Range (m): 30 | Outlet Size (Inch): 1 | Controller Type: Internal |
Features
- Voltage: 20–40 Vmp / 50 VOC — IDC max 10A — max input 0.3 kW
- Max flow 2 m3/h (33 L/min) / Max head 30m / RPM 500–4000
- Built-in controller — no external unit required
- BLDC motor with MPPT and vector control — MPPT efficiency max 99%
- Soft start / Dry run / Lost phase / Stall / Over-temperature protection
8 in stock
Introduction

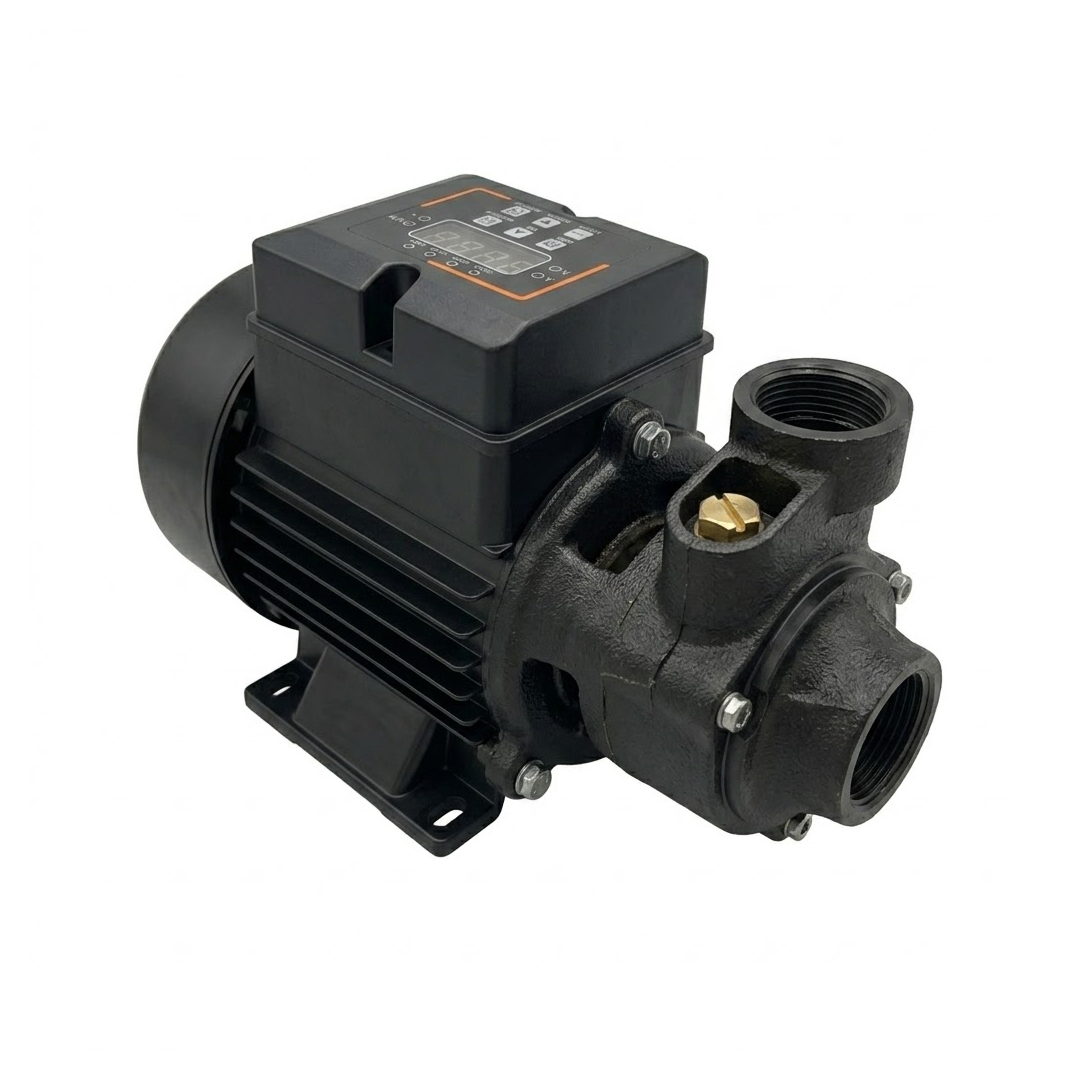

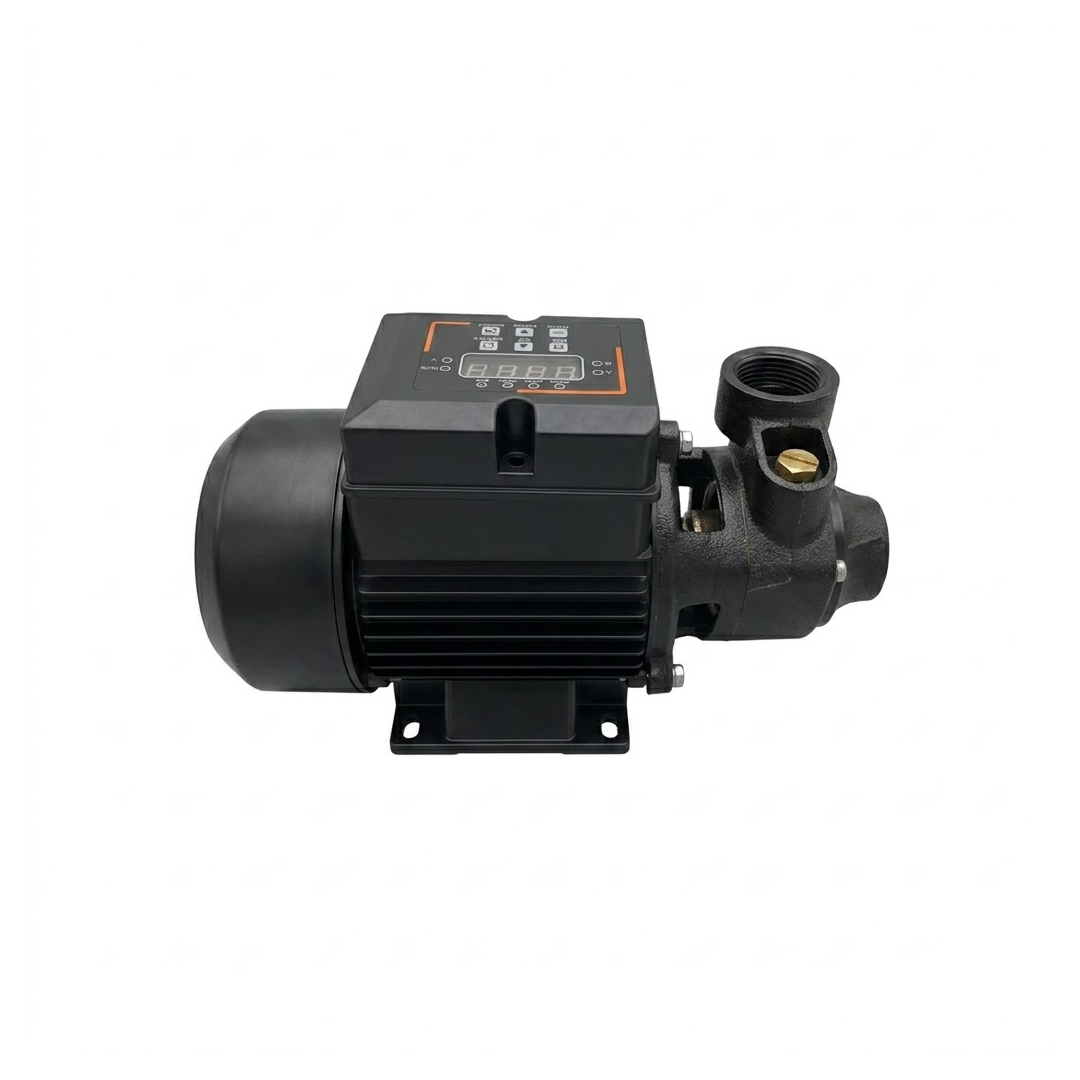

The Maxima QB50-300W is a 300W DC solar surface pump delivering up to 2 m3/h flow and 30m
head, operating from a single 340W solar panel with a fully built-in controller.
General Description
The QB50-300W operates at 20–40 Vmp / 50 VOC with a maximum input current of 10A DC and a
maximum input power of 0.3 kW, recommended with 1 pc of 340W panel. It delivers a maximum
flow of 2 m3/h (33 L/min) at a maximum head of 30m. The controller is fully built-in — no external
unit required. The pump features a high-efficiency BLDC motor with MPPT and vector control,
MPPT efficiency max 99%, soft start, and a Rp 1″ × 1″ outlet. Motor speed 500–4000 RPM, max
water temp 40°C, insulation class F, IP54 rated. Pump unit weighs 3.6 kg. Copper impeller and cast
iron housing. CE and ISO 9001:2015 certified.
Single Panel Operation
Operates from 1 pc of 340W solar panel at 20–40
Vmp / 50 VOC — the lowest panel requirement in the range.
Built-in Controller
Fully integrated controller — no separate control unit,
wiring, or mounting required.
Compact and Lightweight
At 3.6 kg with built-in controller, it is the
lightest model in the Maxima surface pump range.
| Weight | 6.3 kg |
|---|---|
| Dimensions | 0.305 × 0.16 × 0.2 mm |
