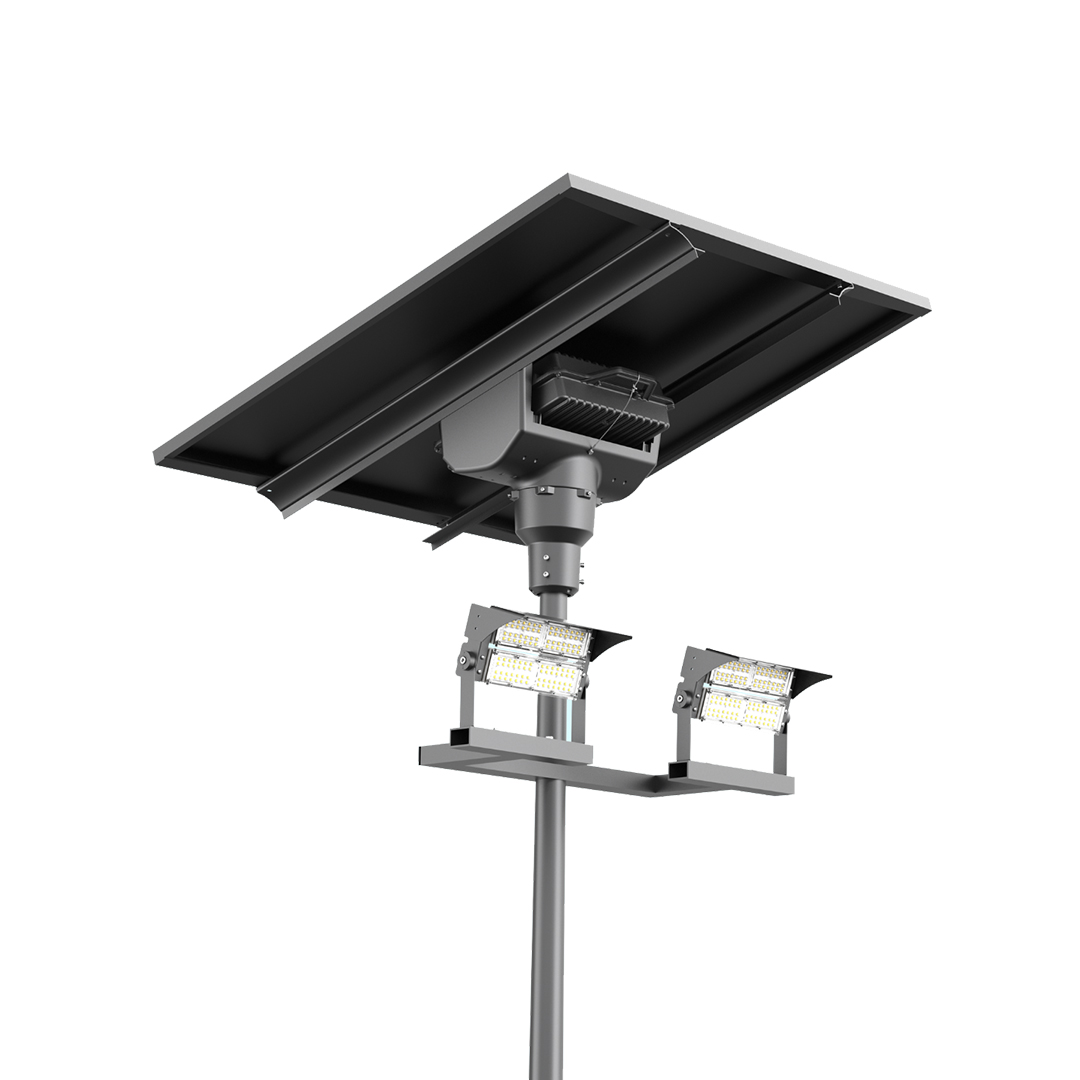

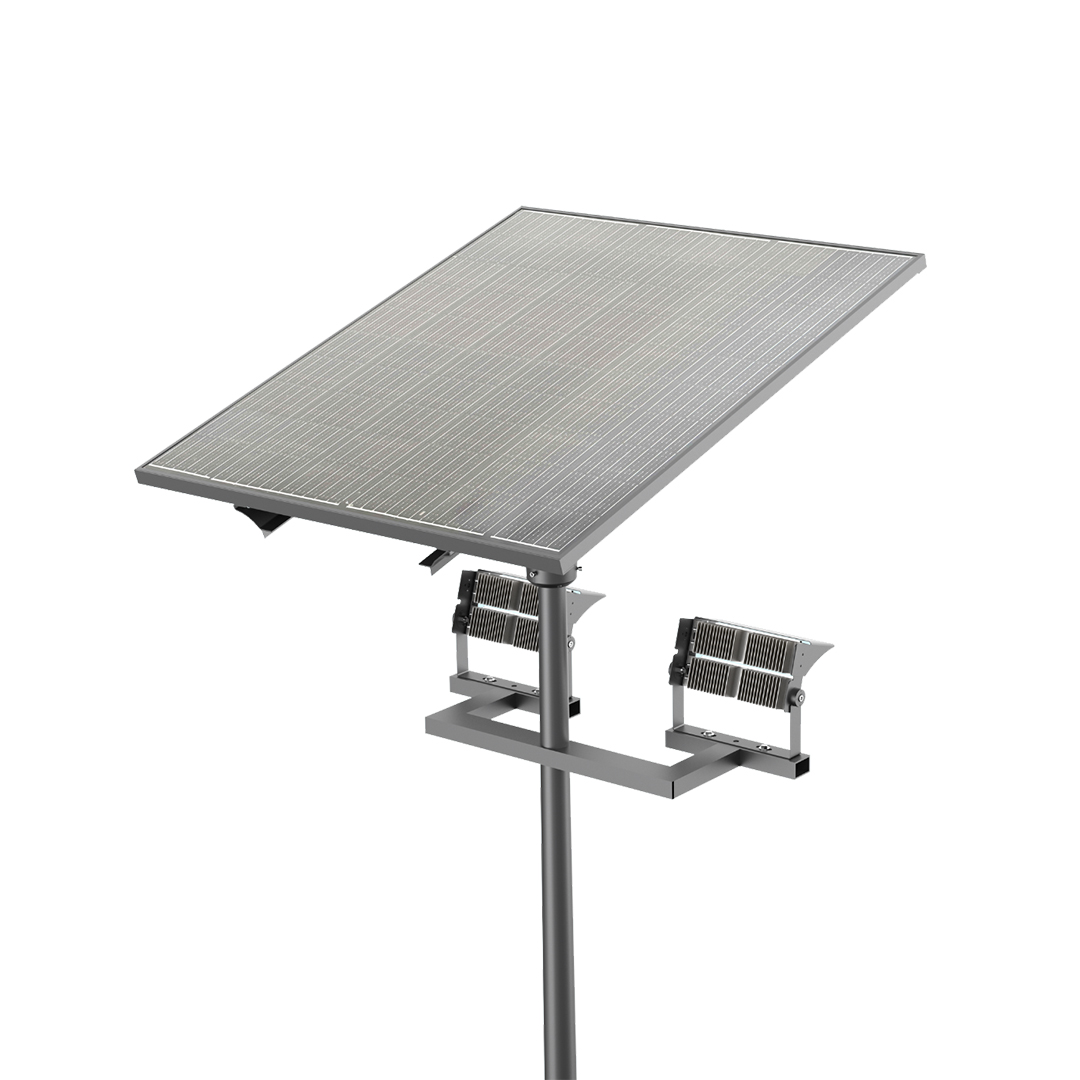

SOLARA-M004-01 Solar Flood Light – Dual 100W

All-in-Two High-Power Floodlight | Wide Coverage, Maximum Efficiency

1. Overview

The SOLARA-M004-01 is a robust, all-in-two solar floodlight system designed for powerful illumination in large outdoor areas. With two 100W Philips LED floodlights and a high-capacity solar system, it’s ideal for stadiums, warehouses, open fields, security perimeters, and large public spaces requiring consistent high-lumen lighting.

2. Solar & Battery Specifications

• PV Power: 260W (36V)

• Solar Panel Size: 1134 x 1303 x 30 mm

• Solar Cell Type: Monocrystalline Silicon

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Battery Capacity: 60Ah, 25.6V

• Battery Cycle Life: >3000 cycles

• Controller: LUMIAX MPPT 2075

3. LED & Lighting Performance

• LED Brand: Philips

• Total Power Output: 100W + 100W

• Luminous Flux: 34,000 lumens total (17,000 lm per light)

• Luminous Efficacy: 170 lm/W

• Color Temperature (CCT): 1800K – 6000K (Ideal at 4000K)

• LED Chip: SMD 5050

• Diffuser: Polycarbonate Lens for wide light distribution

4. Operation & Control

• Work Mode:

  • Programmable or pre-programmed

  • Standard Mode: 100% brightness for 6 hours

• Control Unit: Replaceable

5. Build & Durability

• Material: High-grade Aluminum body

• Ingress Protection: IP65 (dust/waterproof), IK08 (impact-resistant)

• Operating Temperature: -10°C to +80°C

• Recommended Pole Height: 5 – 8 meters

6. Warranty

• Product Warranty: 5 Years
