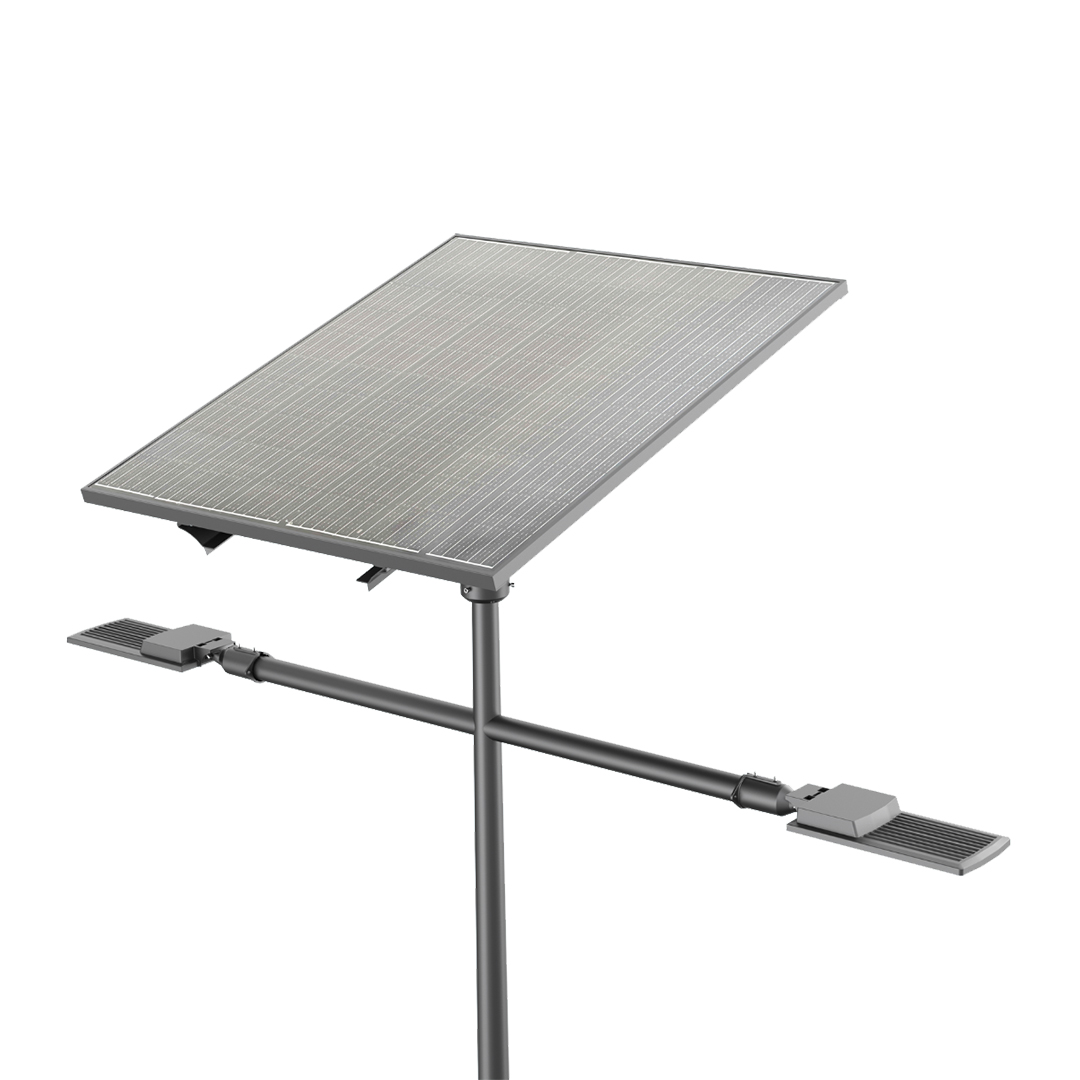

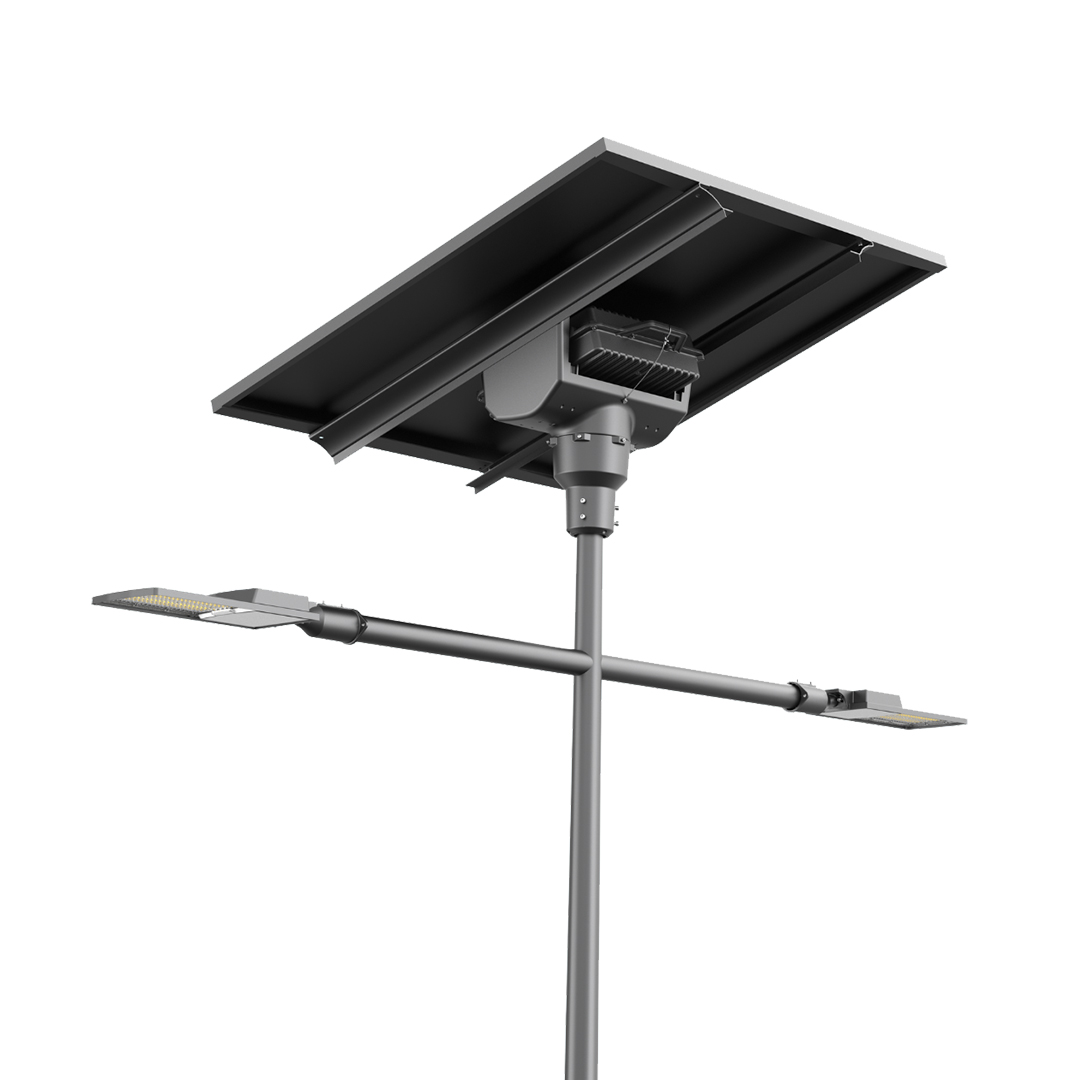

SOLARA-M002-02 Solar Street Light – 2-Way (60W + 60W)

Dual-Head All-in-Two System | High-Efficiency & Intelligent Control

1. Overview

The SOLARA-002-02 is a powerful dual-lamp solar street light designed with an all-in-two configuration. Ideal for wider roads, pathways, and T-junctions, it offers two 60W LED heads for balanced, high-lumen output on both sides of the pole—powered by a single efficient solar system.

2. Solar & Battery Specifications

• PV Power: 260W (36V)

• Solar Panel Size: 1134 x 1303 x 30 mm

• Solar Cell Type: Monocrystalline Silicon

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Battery Capacity: 60Ah, 25.6V

• Cycle Life: >3000 charge cycles

• Controller: SRNE MPPT DM160

3. LED & Optics

• LED Brand: Philips

• Total Power Output: 60W + 60W

• Total Luminous Flux: 22,000 lumens (11,000 lm per lamp)

• Luminous Efficacy: 180 lm/W

• Color Temperature (CCT): 1800K – 6000K (Ideal: 4000K)

• Chip Type: SMD 5050

• Diffuser: Durable Polycarbonate Lens

4. Work Mode & Control

• Work Mode:

  • Programmable or pre-programmed

  • Default: 100% brightness for the first 6 hours, then 50% for the next 6 hours

• Control Unit: Replaceable

5. Build & Durability

• Material: Aluminum housing

• Protection Rating: IP65 (water/dustproof), IK08 (impact resistant)

• Operating Temperature: -10°C to +80°C

• Recommended Pole Height: 5 – 8 meters

6. Warranty

• Product Warranty: 5 Years
