SOLARA-M002-01 Solar Street Light

All-in-Two Design | High Efficiency Lighting with Smart Control

1. Overview

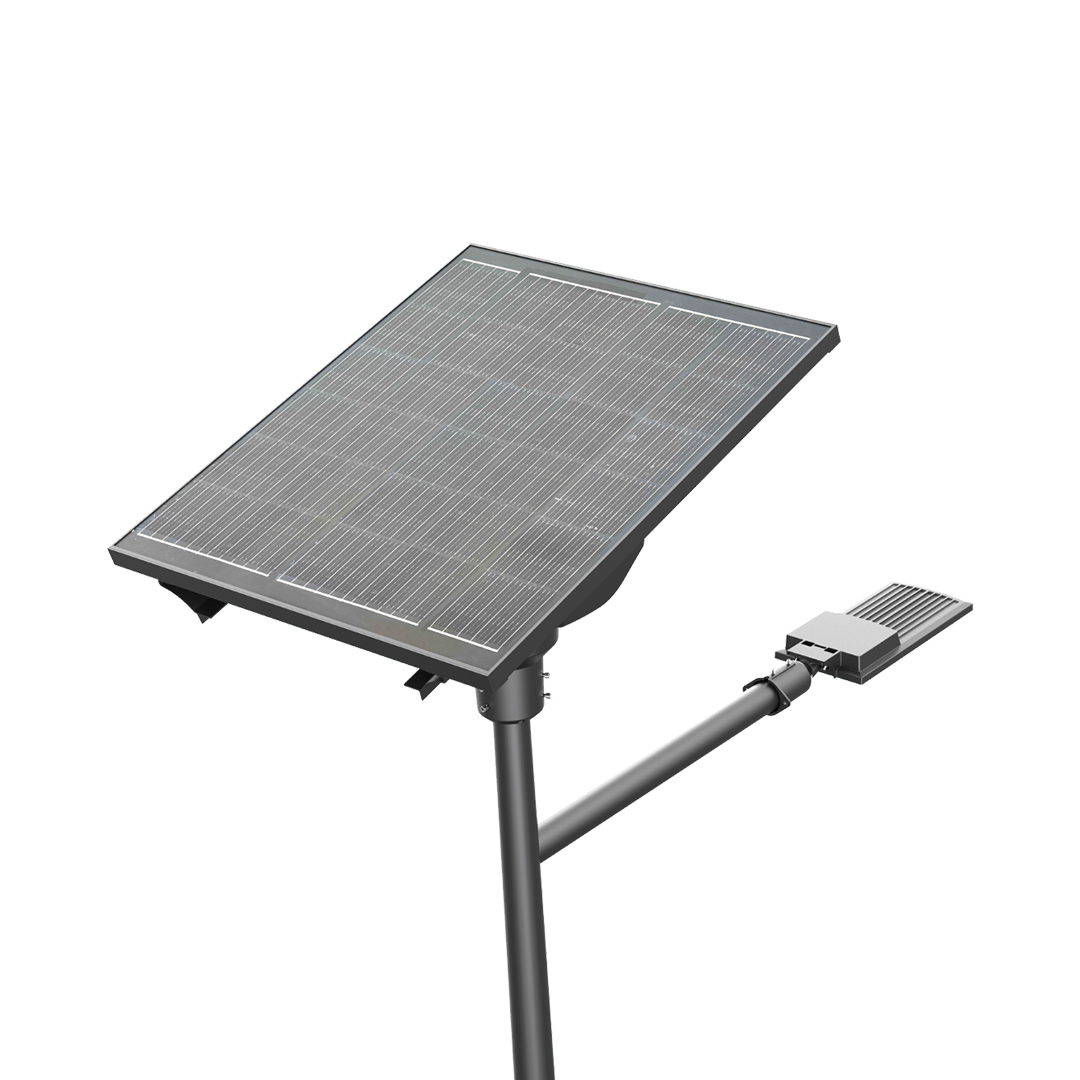

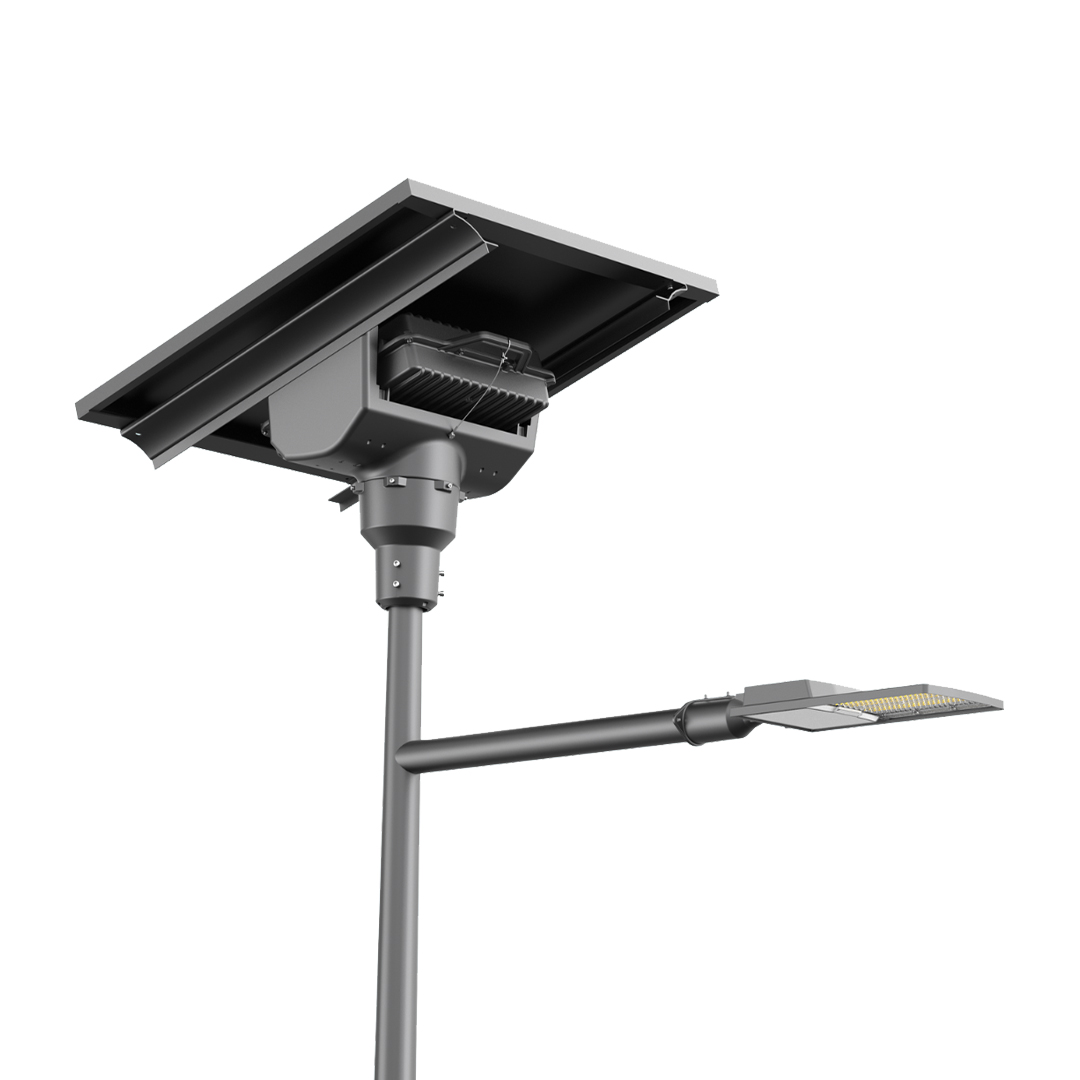

The SOLARA-M002-01 (60W version) is an all-in-two solar street light built for high-efficiency performance and long-term durability. Designed with a separate battery and solar panel unit, it is ideal for roads, pathways, and outdoor public areas requiring sustainable lighting.

2. Solar & Battery Specifications

• PV Power: 180W (18V)

• Solar Panel Size: 980 x 980 x 30 mm

• Solar Cell Type: Monocrystalline Silicon

• Battery: 60Ah, 12.8V LiFePO₄

• Battery Life: >3000 charge cycles

• Controller: SRNE MPPT DM80

3. Lighting Performance

• LED Brand: Philips

• Power Output: 60W

• Luminous Flux: 11000 lumens

• Efficiency: 180 lm/W

• Color Temperature Range: 1800K – 6000K (Ideal: 4000K)

• LED Chip Type: SMD 5050

• Diffuser: Polycarbonate Lens

4. Operation & Durability

• Work Mode:

  • Programmable or pre-programmed

  • Default: 100% brightness for first 6 hours, 50% for next 6 hours

• Protection Rating: IP65 (dust/waterproof), IK08 (impact resistant)

• Control Unit: Replaceable

• Operating Temperature: -10°C to +80°C

• Material: Aluminum

• Pole Height Recommendation: 5 – 8 meters

5. Warranty

• Product Warranty: 5 Years
