Solar Garden Bench

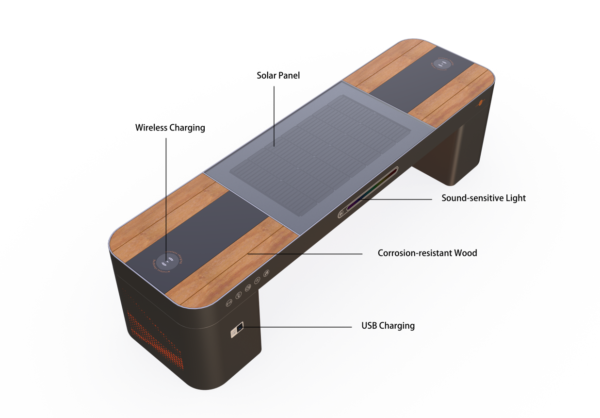

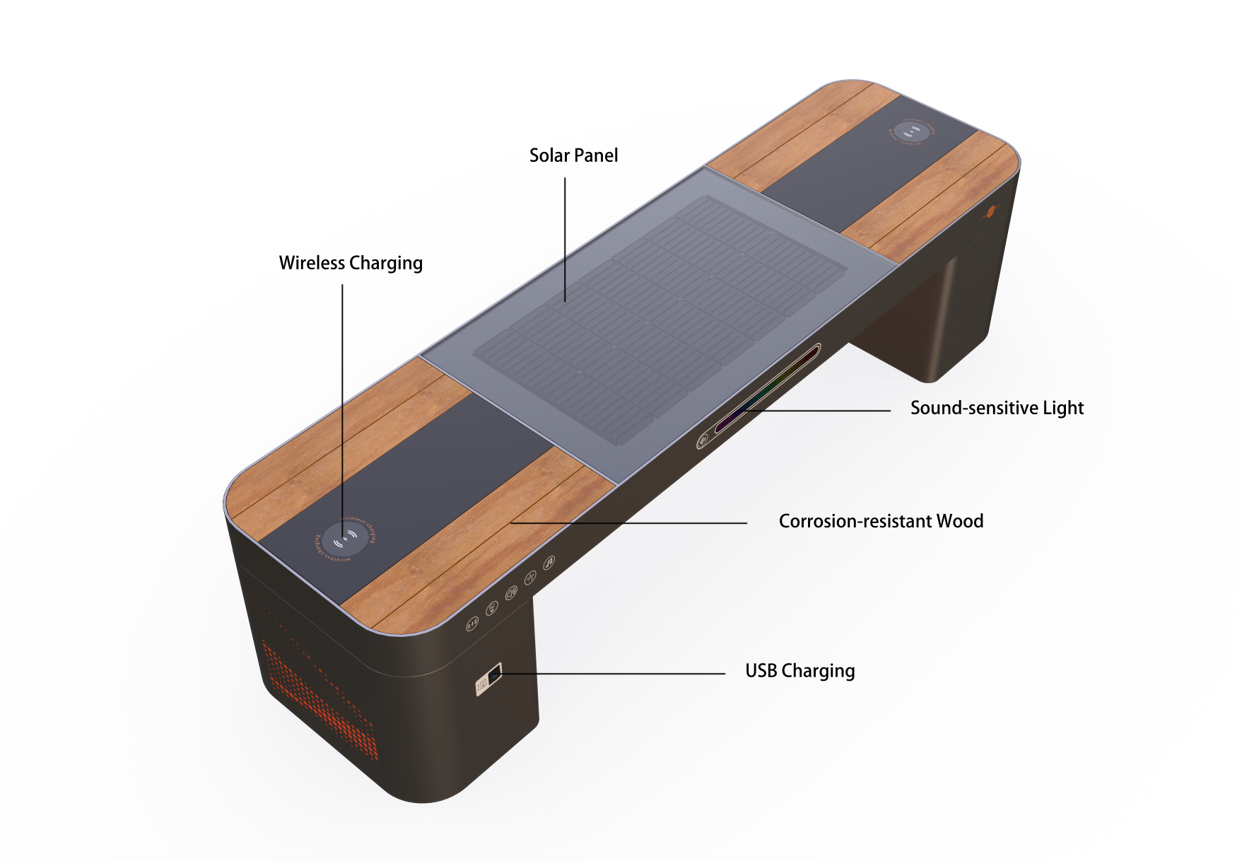

The Solar Garden Bench is a multifunctional, eco-friendly seating solution designed for smart outdoor spaces. Equipped with a 49W solar panel and a built-in 12V 60Ah battery, it supports both USB and wireless charging for public use. Integrated LED lighting ensures visibility and ambiance after dark.

Technical Specifications

Solar Panel

• Panel Dimensions: L1300mm × W488mm × T9.9mm

• Power: 49W

• Max Power Current (Imp): 5.98A

• Max Power Voltage (Vmp): 8.26V

• Short Circuit Current (Isc): 6.24A

• Open Circuit Voltage (Voc): 9.64V

• Cell Configuration: 182 half-cells (7×2)

• Cable Length: 300mm

Bench Structure

• Bench Dimensions: L2300mm × W500mm × T450mm

• Materials: Galvanized steel sheet, corrosion-resistant wood, double-layer tempered finish

• Surface Treatment: Plastic spray + paint

• Battery: 12V 60Ah

• Power Output: 10V, 49W

Features

• Charging: USB and wireless

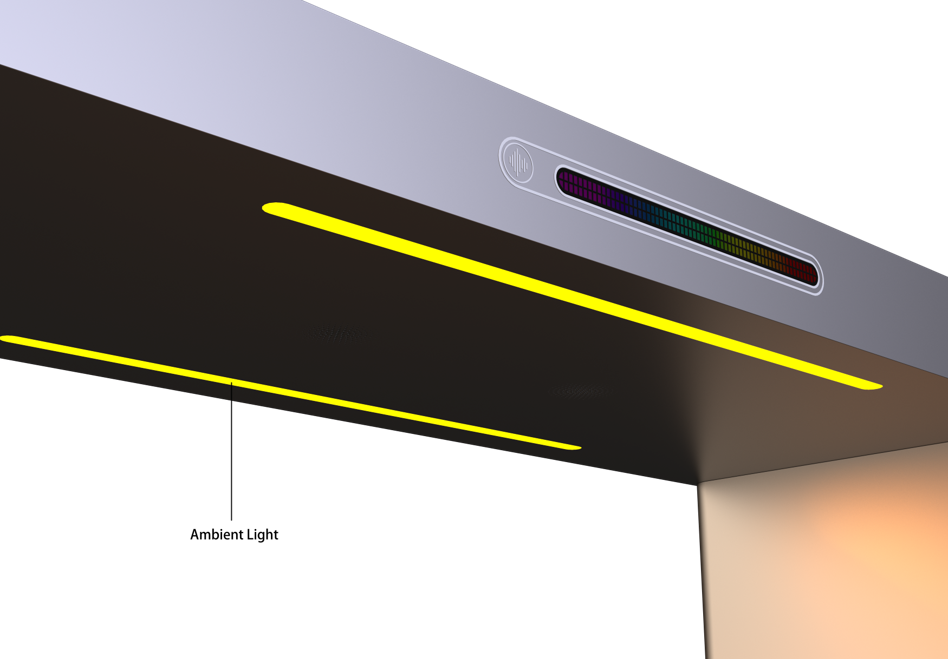

• Lighting: Integrated light-emitting system

• Ideal Use: Public parks, schools, urban seating, eco-smart installations

Warranty & Maintenance

• Built with weatherproof and durable materials for long-term outdoor use. Maintenance is minimal and suitable for smart city infrastructure.

• 5 Year Warranty
