MPW5-12S-X-2.5K-AC/DC
AED: 1,840.00(Excl. VAT)
Economic DC Submersible Pump - TUV Certificate Quick Specs
| Input Power W: 2500 W | Min Ac Voltage Vdc: 150 | Max Ac Voltage Vdc: 240 |
| Min Dc Voltage Vdc: 60 | Max Dc Voltage Vdc: 450 | Nominal Flow M3 Hr: 5 |
| Nominal Head M: 80 | Min Flow Range M3 Hr: 3.36 | Max Flow Range M3 Hr: 8.3 |
| Min Head Range M: 40 | Max Head Range M: 110 |
Features
- Stainless Steel (AISI 304): Corrosion-resistant, high-grade construction for maximum durability.
- BLDC High-Efficiency Motor: Optimized performance with minimal energy loss.
- External Controller: Simplifies installation and maintenance.
- Dual Power Compatibility: Operates with both AC and DC sources.
- Real-Time Display: Voltage, current, power, RPM, and temperature monitoring.
- Eco-Safe Water-Filled Motor: No pollution risk due to sealed design.
- Soft Start Technology: Reduces wear and extends system lifespan.
2 in stock
Introduction

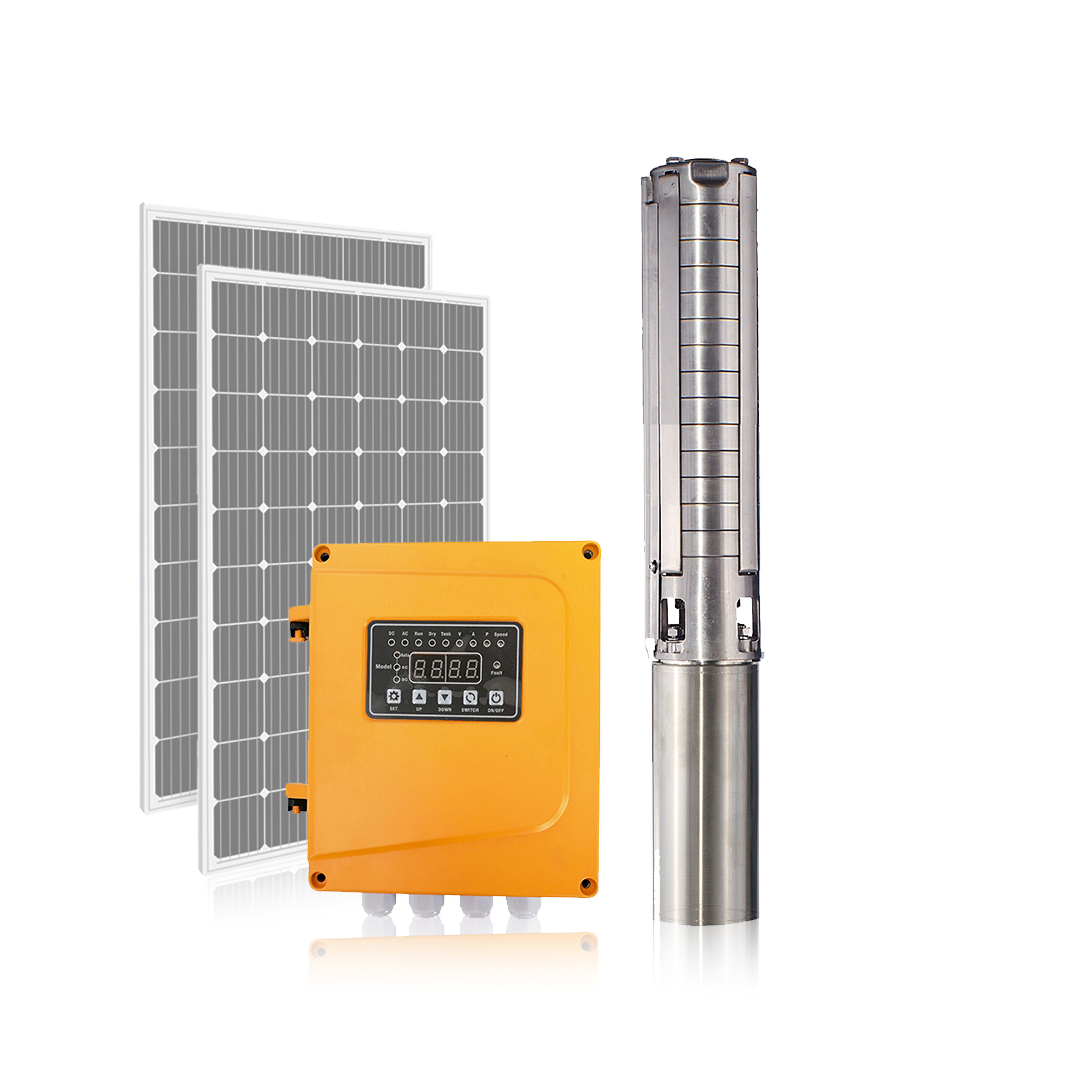

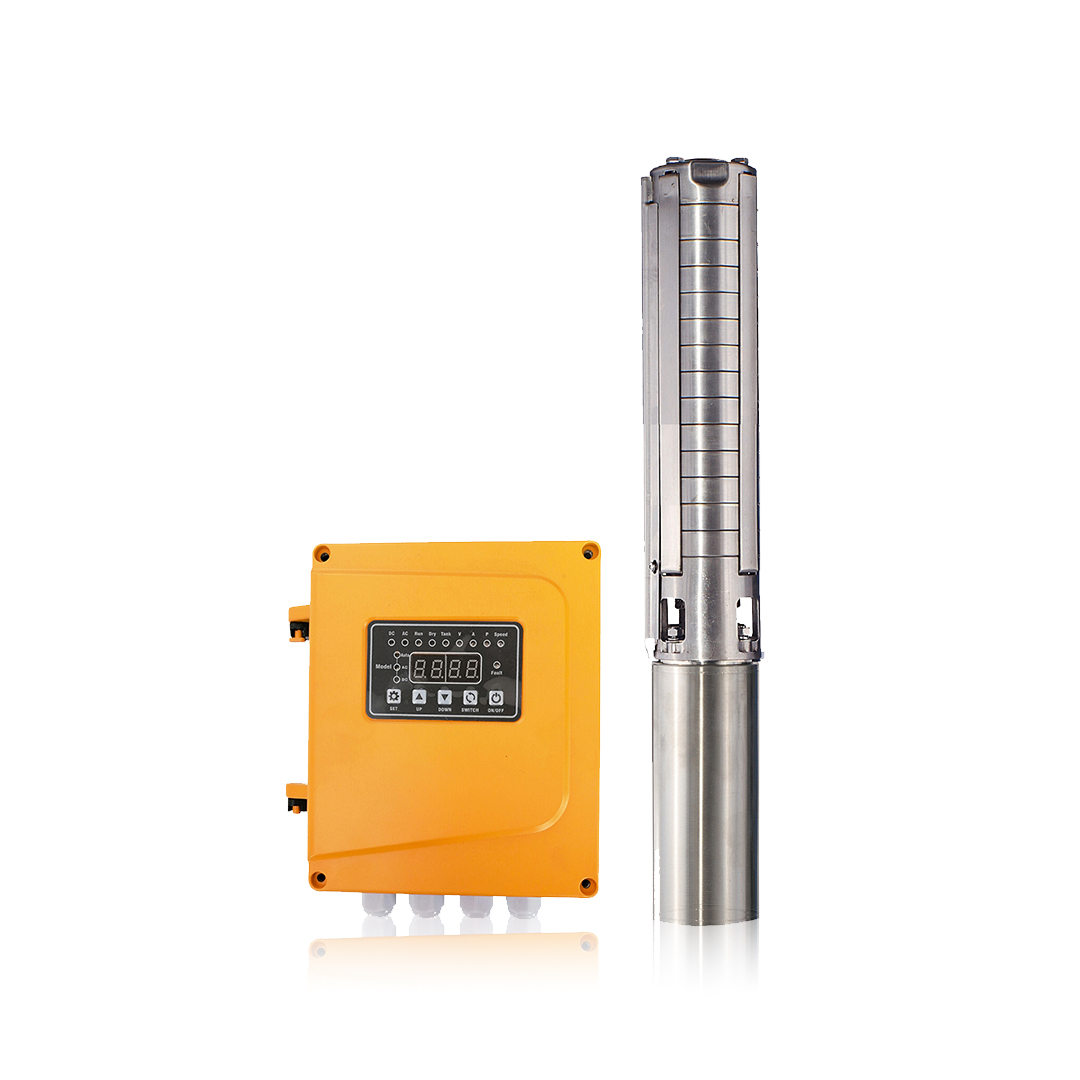

The MAXIMA Solar Motor Pump is an advanced, eco-friendly water supply system powered by solar energy — the most abundant renewable resource. Designed for simplicity, durability, and maintenance-free operation, it provides a sustainable solution for clean water delivery in areas with limited or no access to grid electricity.
General Description
Engineered with high-quality stainless steel and a high-efficiency BLDC motor, the MAXIMA Solar Pump ensures long-lasting performance and energy savings. Its flexible design supports both AC and DC power inputs, while the external controller allows for easy installation, monitoring, and maintenance. Ideal for agricultural, domestic, and remote water supply applications.
Durability and Performance
Built with high-grade AISI 304 stainless steel, the pump ensures superior corrosion resistance and durability even in harsh environments. Its high-efficiency BLDC motor minimizes energy loss while delivering consistent power output, ensuring smooth and dependable operation throughout its lifespan.
Smart Design and Flexibility
The MAXIMA Solar Pump features an external controller that simplifies installation and maintenance while offering real-time monitoring of voltage, current, power, RPM, and temperature. Its dual power compatibility allows operation on both AC and DC inputs, providing flexibility for different energy setups and conditions.
Eco-Friendly and Reliable Operation
With a sealed, water-filled motor design, the system eliminates any pollution risk and ensures environmentally safe operation. The soft start feature reduces electrical and mechanical stress, extending the system’s life and guaranteeing reliable performance for sustainable water management solutions.

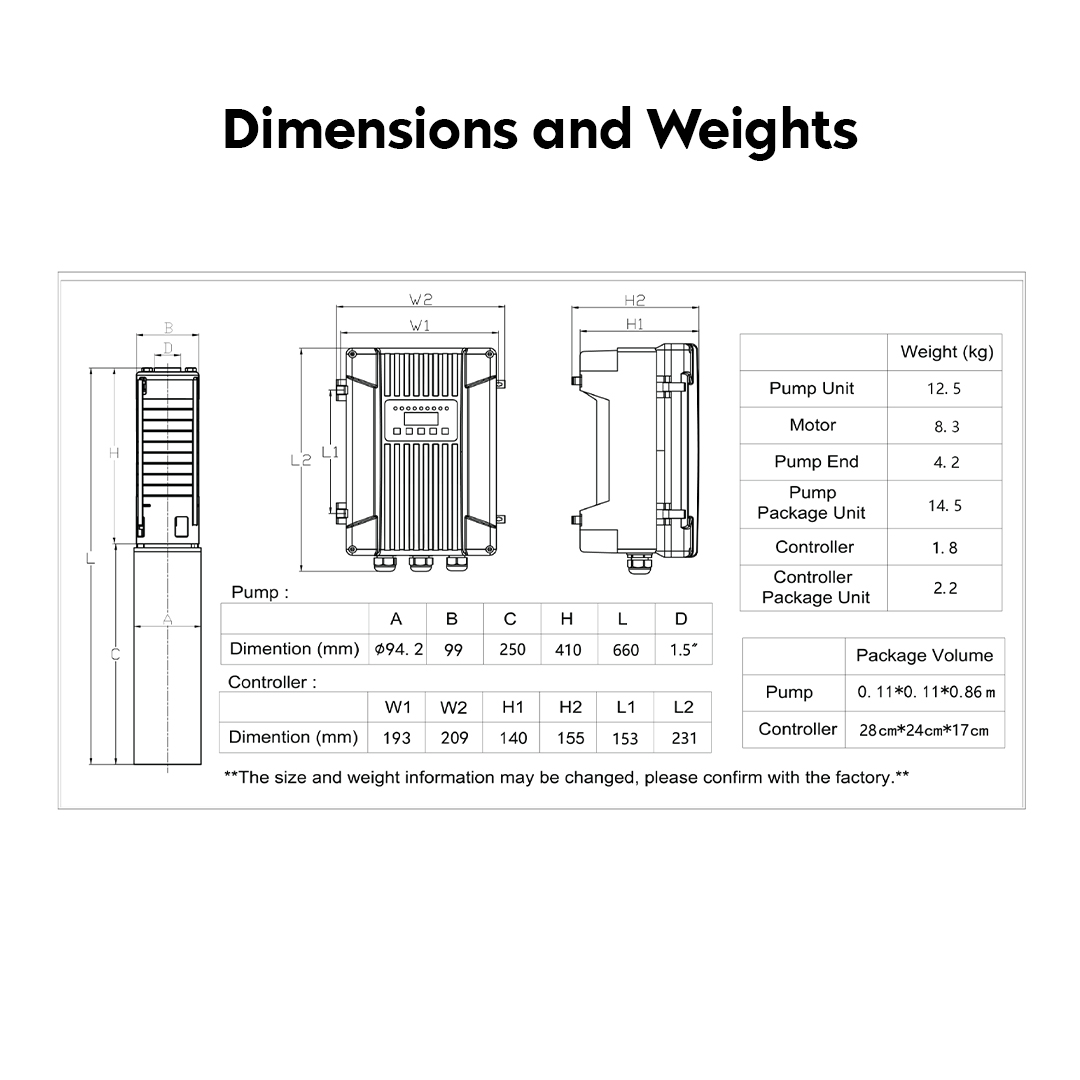

| Weight | 14.5 kg |
|---|---|
| Dimensions | 660 × 110 × 860 mm |
