Front Leg
AED: 30.00(Excl. VAT)
Quick Specs
| Material Type: Aluminum Alloy | Length (mm): 110 | Width (mm): 45 |
| Connector Type: Wall Mount | Weight (gm): 245 | Holes (mm): M6x75 Screw |
Features
- Adjustable Tilt Bracket
- Enables angle optimization for maximum solar exposure
- Corrosion-Resistant Aluminum Construction
- Lightweight yet strong, ideal for outdoor environments
- Sturdy Base Plate with Anchor Points
- Ensures secure fixation to concrete or structural surfaces
- Height Elevation Design
618 in stock

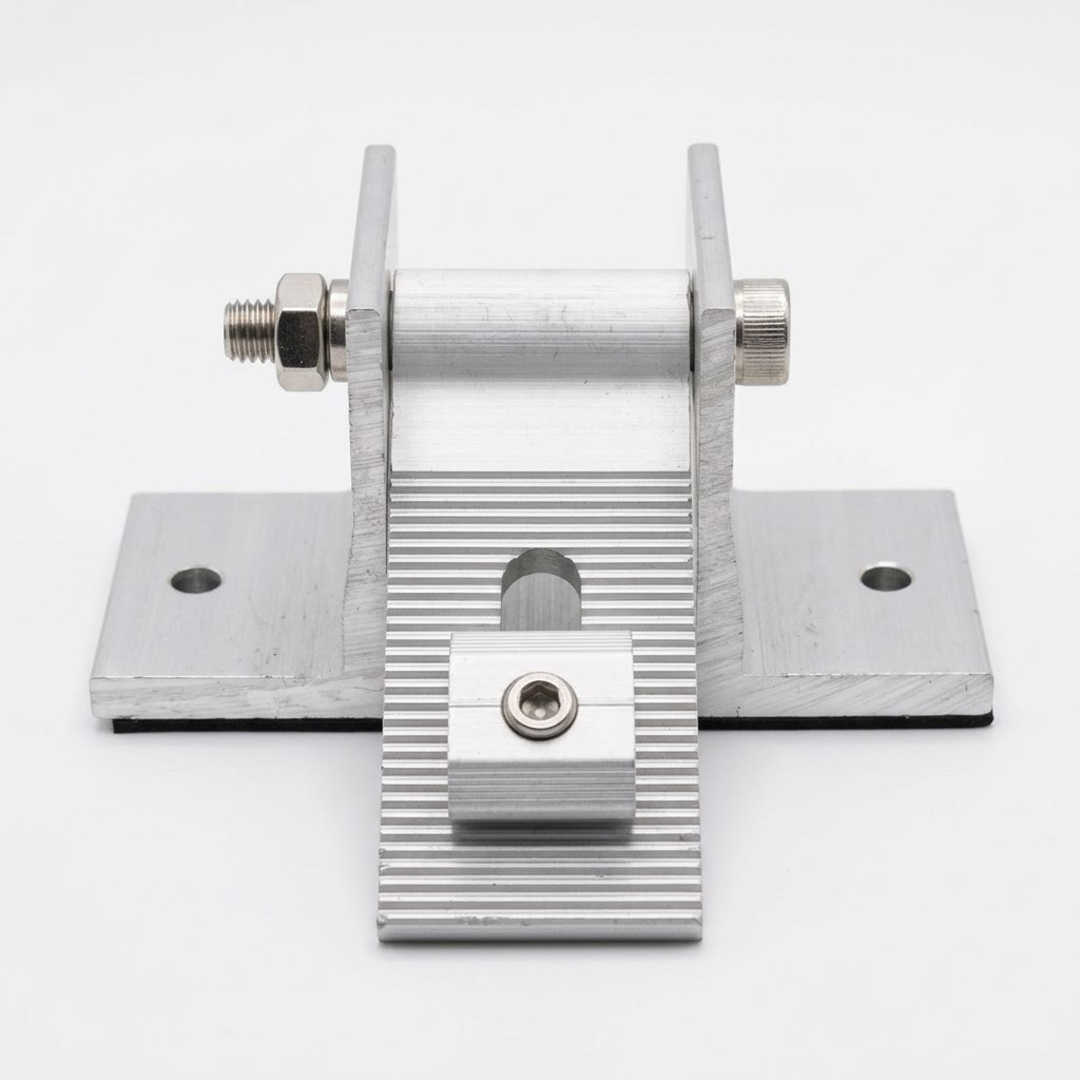

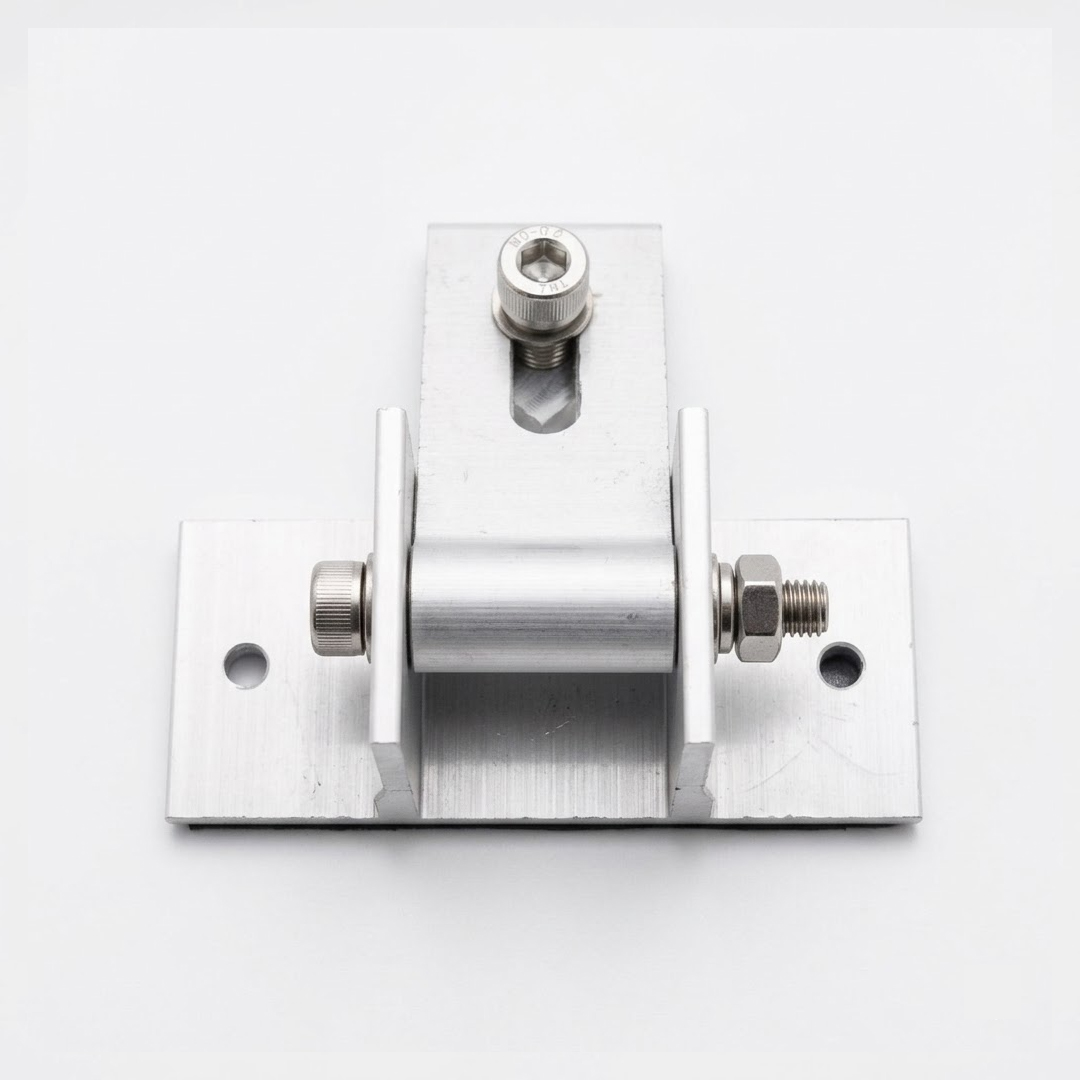

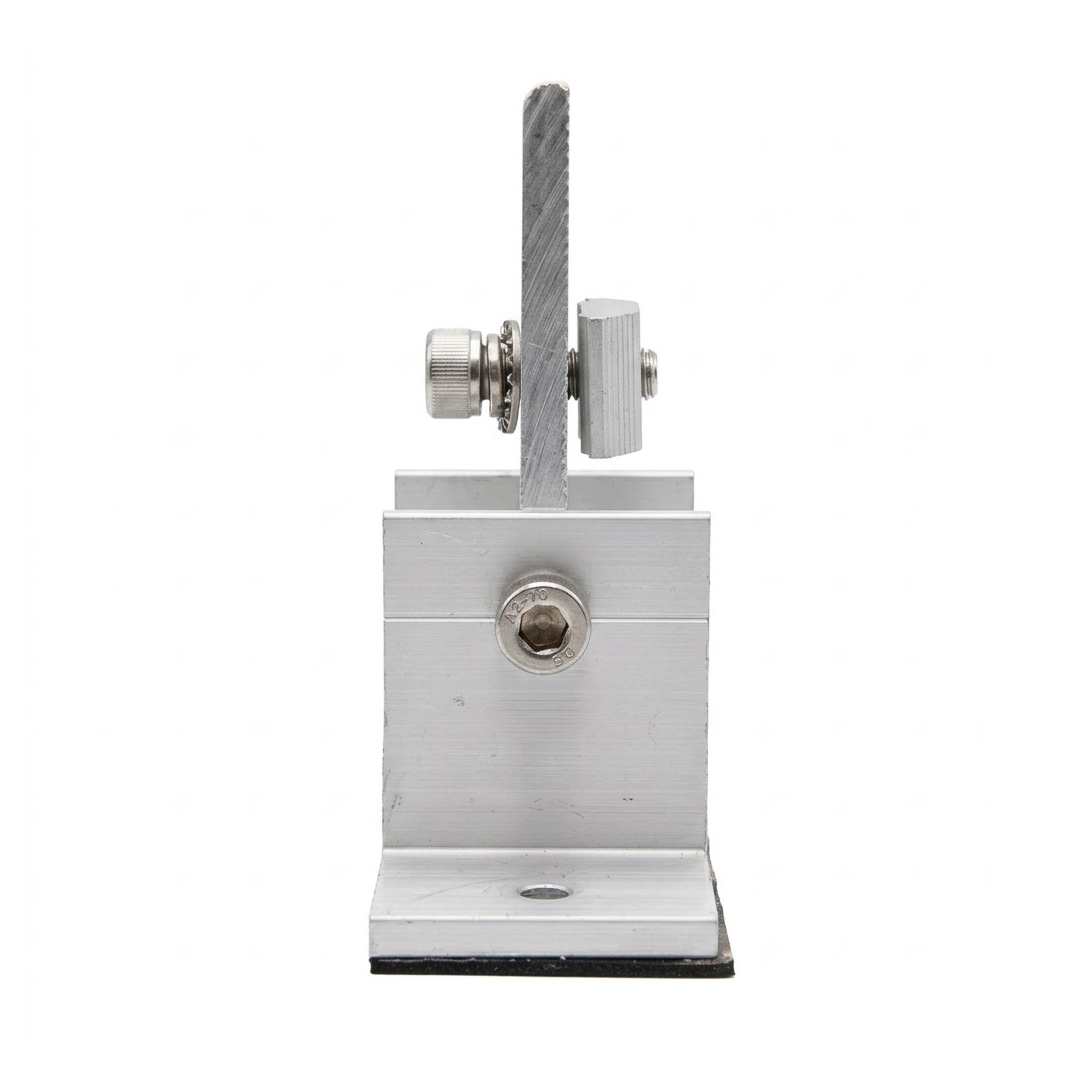

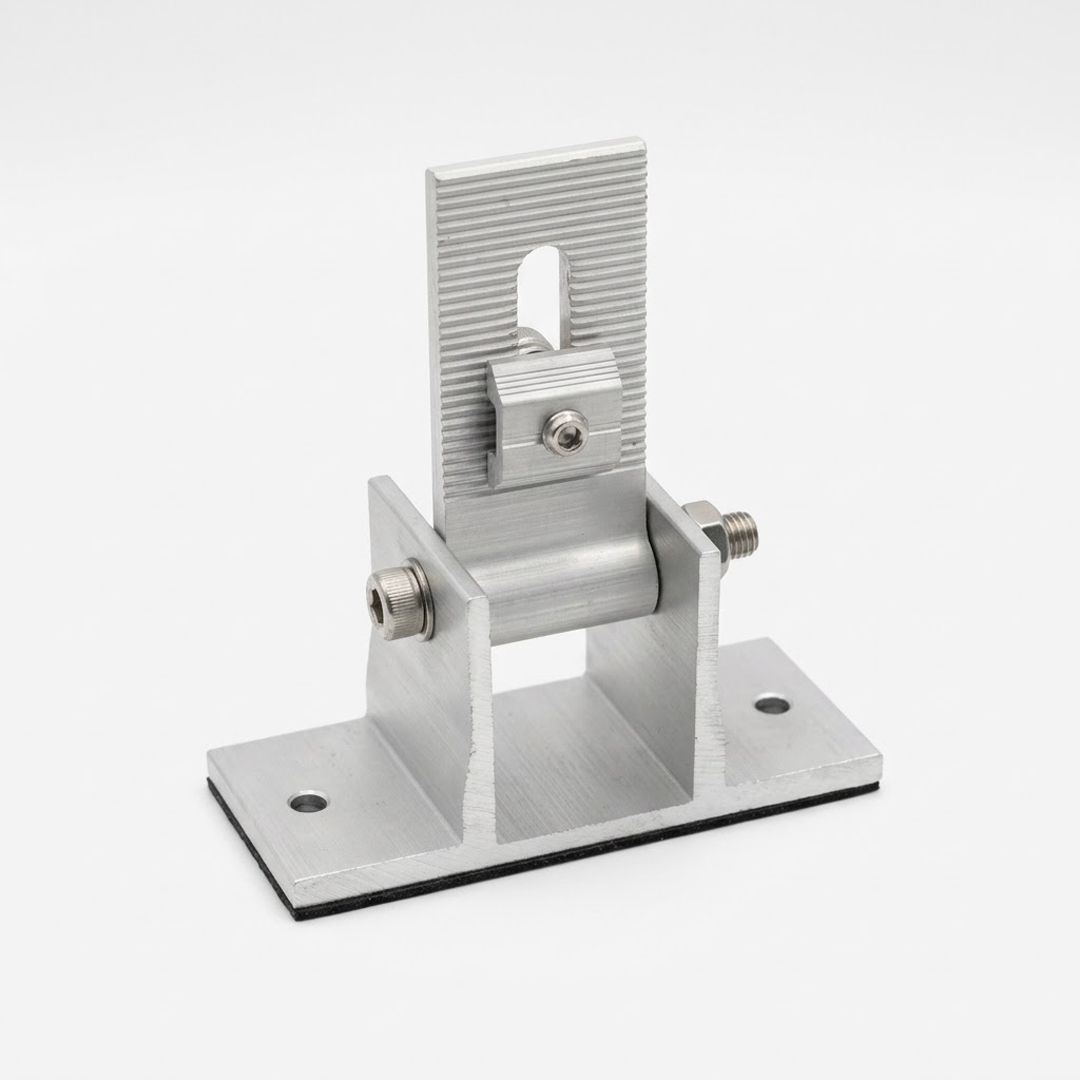

It’s an aluminum solar mounting stanchion/post designed to support and secure solar panels. The adjustable top bracket allows panels or rails to be fixed at a specific angle.
How is it used in solar installation?
The base plate is bolted to a concrete slab, roof, or structural surface. The vertical post provides elevation and clearance. The top adjustable bracket connects to Solar mounting rails, or Directly to the panel frame (in some systems). Installers adjust the tilt angle using the bracket to optimize solar generation.
Typical applications:
- Balcony solar systems
- Flat roof tilt structures
- Small ground-mounted systems
- Parapet or railing-mounted installations
Why is it important?
Ensures proper tilt angle, improving energy yield. Provides structural stability against wind loads. Allows flexibility in installation where standard racking isn’t feasible. Helps maintain panel clearance for cooling and maintenance. Critical for safe and durable mounting, especially in exposed areas.
