Battery Monitor BMV-700 Smart Retail 6.5V – 95VDC
AED: 460.00
Quick Specs
| Voltage: 6.5V- 95V | Operating temp.: -40 – +50 | Battery Capacity: 1-9999Ah |
| VE Direct: Yes | Relay: 60V/1A | Bluetooth: No |
Features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable relay, to turn off non-critical loads or to run a generator when needed
- Wide input voltage range: 6.5 – 95V
- Automatically determines nominal voltage
.
7 in stock
Introduction
Device that helps monitor the battery current status as well as historical currents in and out of it.
General Description
The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.
Bluetooth Smart
Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Easy To Install

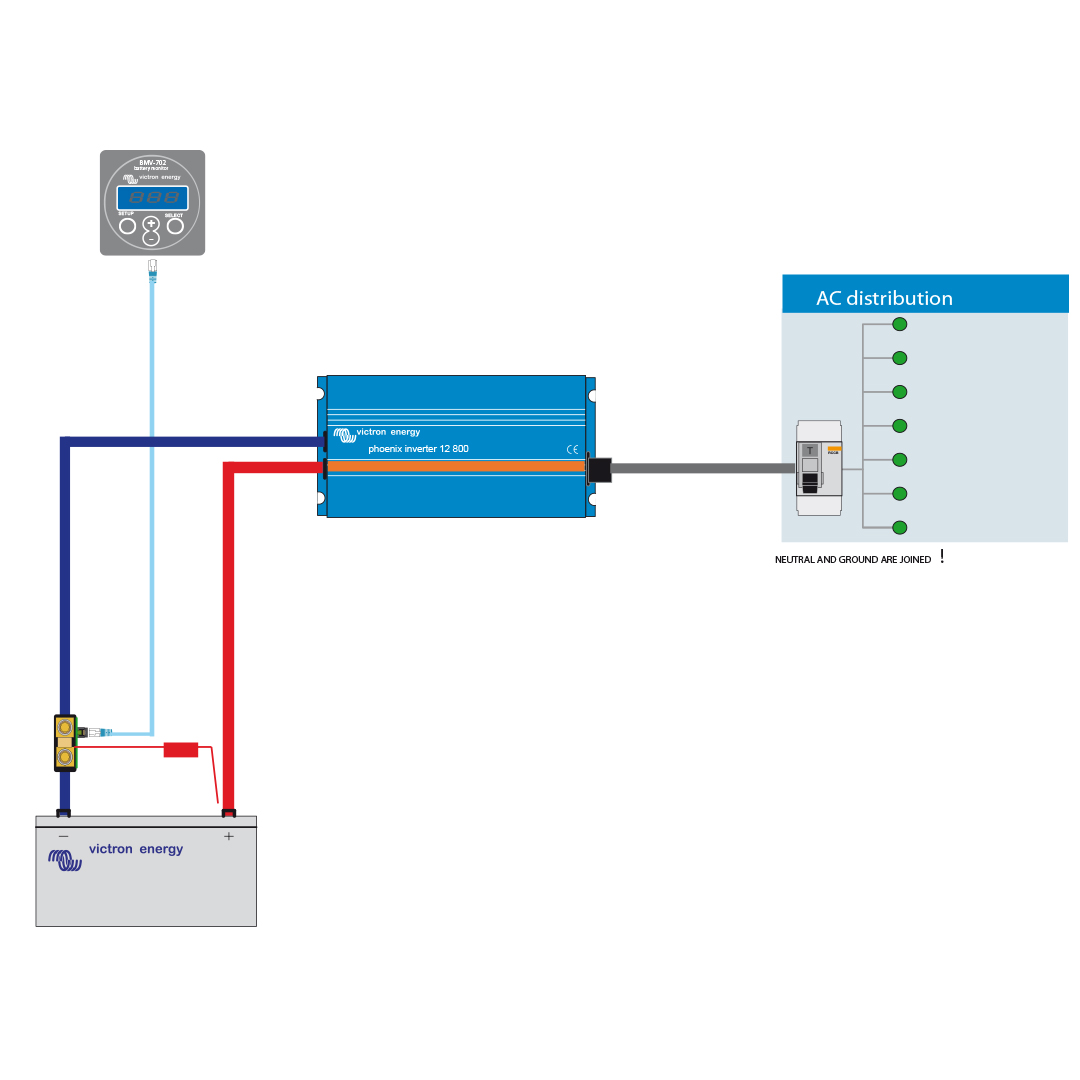

All electrical connections are to the quick-connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); no other components needed. Also included is a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
| Weight | 0.3 kg |
|---|
