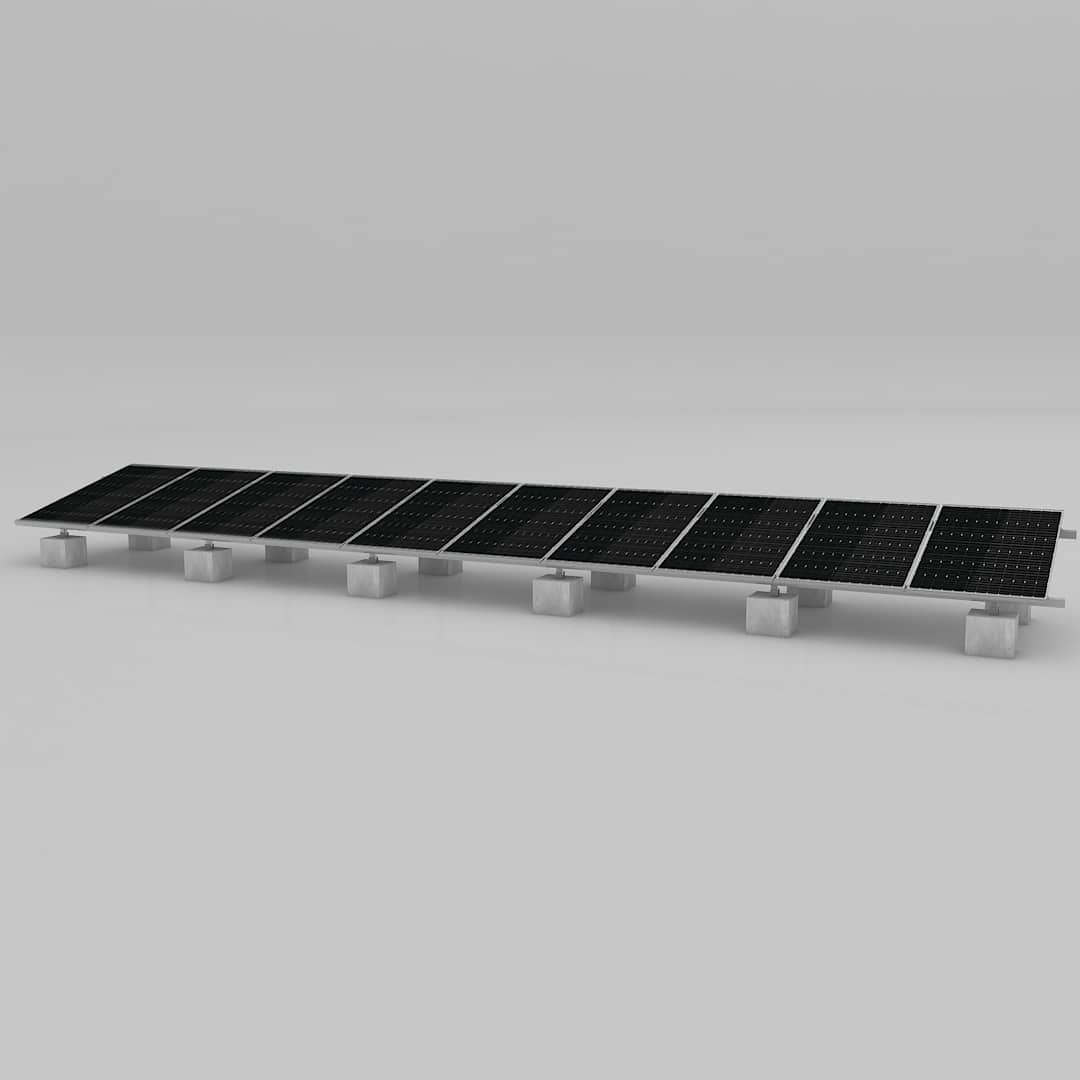

Solar Stand – L10

AED: 1,495.00

SKU: Solar Stand - L 10 - 550 Watt Category:
Quick Specs
Max. Panels: 10 Panel Width: 1000mm Max. Thickness: 45mm

Total Width: 10320mm Front/Back legs: 7/7 Bolt Size:  M6 * 75

Features
  • Compact Shipping
  • Anodized Aluminum rails and clamps
  • SS fasteners
  • Pre-Engineered for 120Km/hr wind speeds
  • Ground, roof mounting

65 in stock

For more information
+971 4 552 4462
info@maxima.solar

65 IN STOCK

Introduction

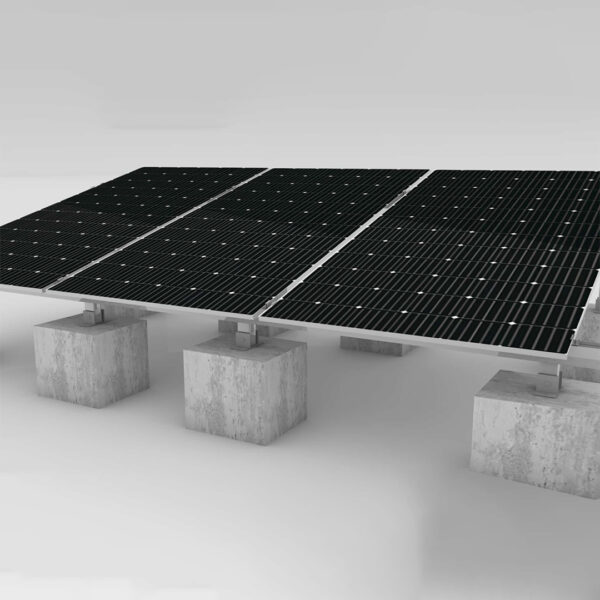

Easy Plug and play kit for mounting solar panels on ground or on the roof.

General Description

Maxima range of mounting kits are pre-engineered anodized aluminum rail and clamp type mounting structures that allow easy on site installation.

Corrosion and Rest proof

A thick layer of oxide deposit on the aluminum significantly improves corrosion resistance. All the fasteners like nuts and bolts are made using rustproof stainless steel material.

Adjustable Inclination

The structure is designed using telescopic back legs and fixed front legs that allow tilting of panels, which may be done to adjust the tilt seasonally.

Pre-Engineered

The structure is made using a pre-engineering structural design to withstand 120km/hr wind gusts. Standard construction/building grade blocks with anchor bolts on each leg is all that is required to complete the installation on-site on a ground or on a flat roof. For the inclined roof, the systems come with drill head screws that are easy to install on-site.

Weight 30 kg
Dimensions 10320 × 1138 mm

Usage Information


Forest
User Installation Guide

Data Sheet


Forest
Solar Stand – Data Sheet
