Lynx Power in – M8

AED: 880.00

SKU: VELYN020102000 (Lynx Power in M8) Category:
Quick Specs
Voltage:  60 Vdc Current rating: 1000 Vdc Bluetooth: No
Temp. Sensor: No Bus connector: M8 VE.Direct: No
Features
  • 1000Adc continuous rating
  • Upto 60Vdc rating
  • Tinned Copper bus bar
  • +60C temperature rating

3 in stock

For more information
+971 4 552 4462
info@maxima.solar

3 IN STOCK

Introduction

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection.

General Description

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. The Lynx Power In makes up a part of the distribution system.

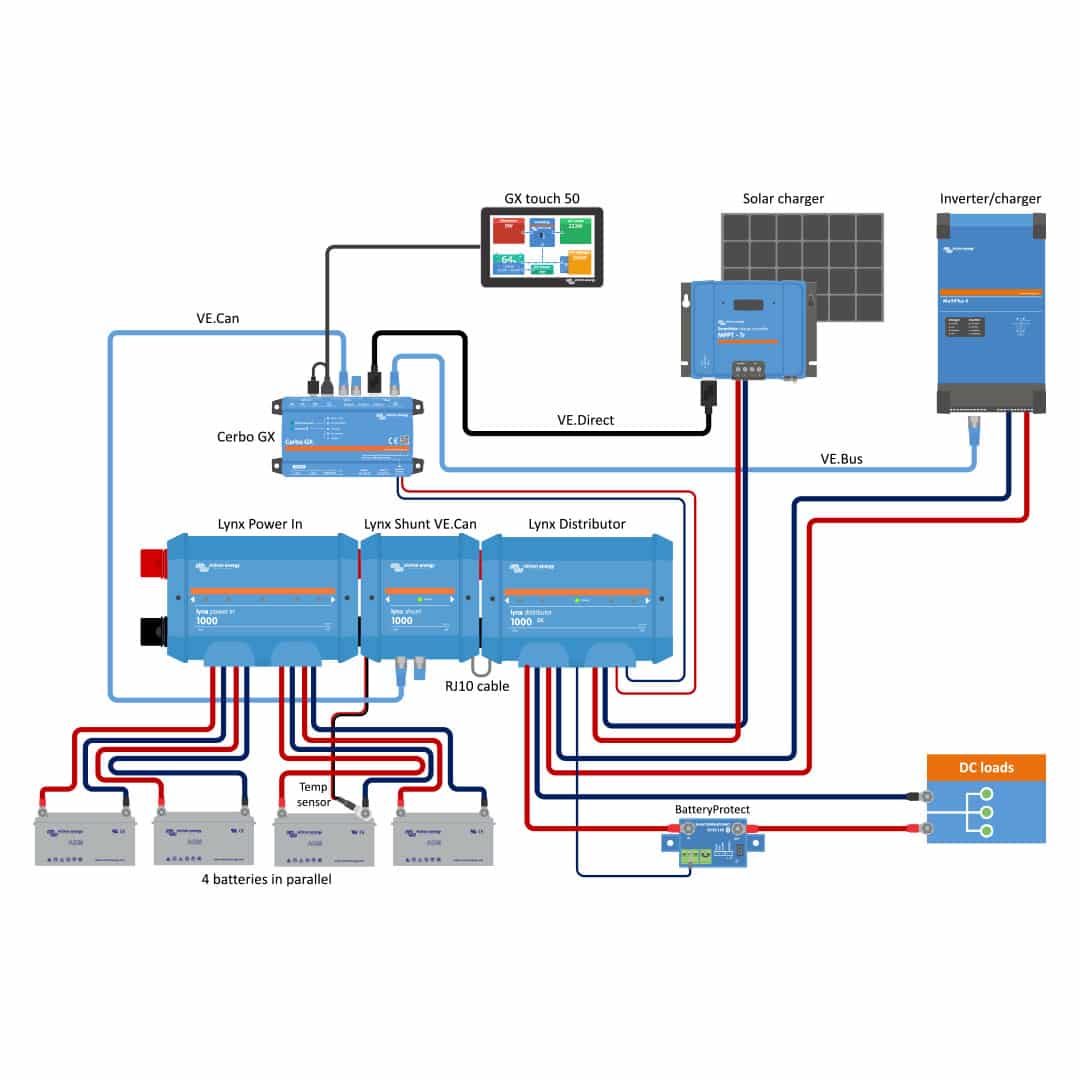

Interconnecting Lynx Modules

Each Lynx module can connect to other Lynx modules on the left side and on the right side.

Orientation of Lynx Modules

If the Lynx System contains a Lynx Shunt VE.Can or Lynx Smart BMS, the batteries always have to be connected to the left side of the Lynx System and the rest of the DC system (loads and chargers) connect to the right side. This so the battery state of charge can be correctly calculated.

Current rating Lynx Modules

The Lynx Distributor, Lynx Shunt VE.Can and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System voltages.

Weight 0.8 kg
Dimensions 288 × 77 × 106 mm

Usage Information


Forest
Lynx Manual

Certification


Forest
Lynx Certificate
